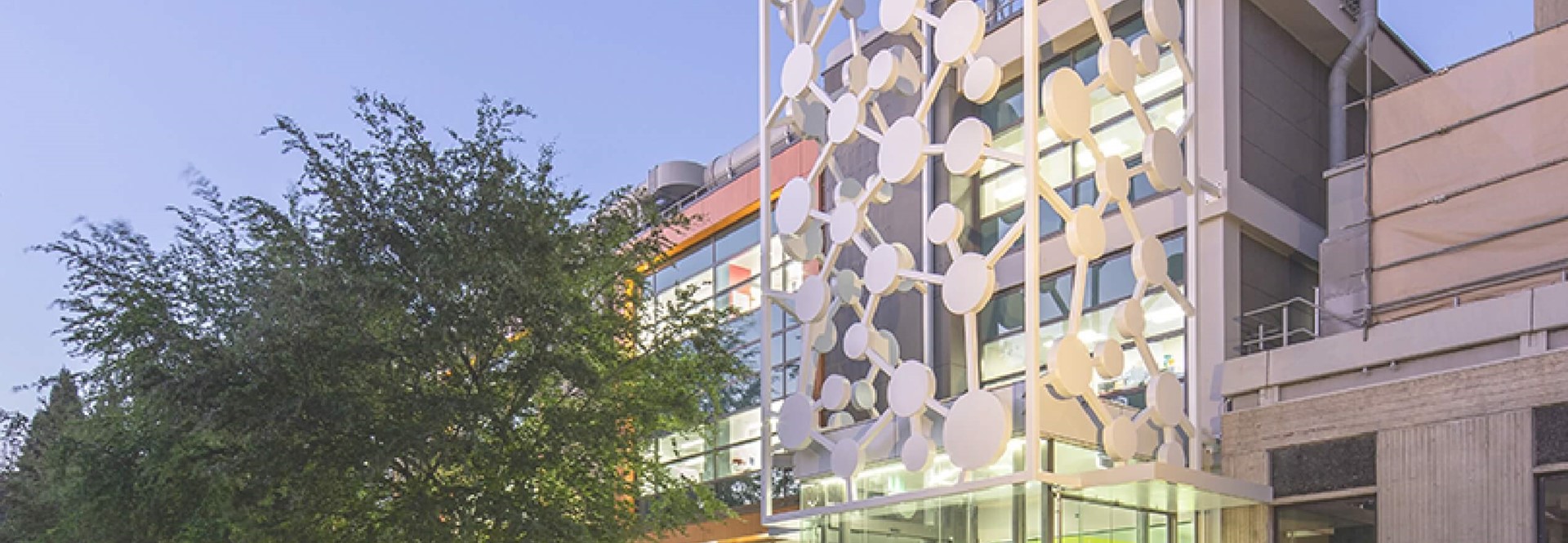

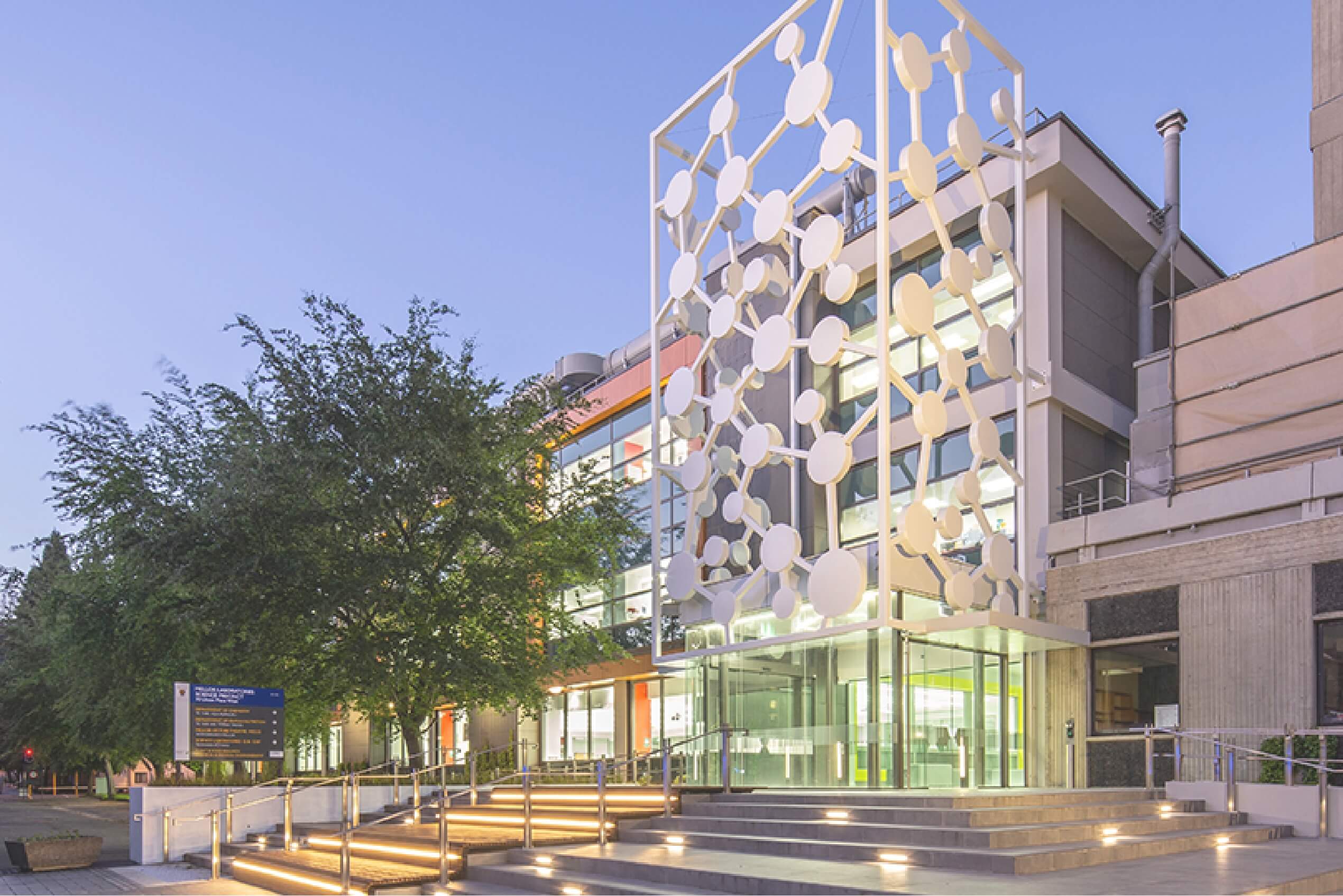

University of Otago

The redevelopment of the 45-year-old science precinct building at the University of Otago was way overdue, with the roof in desperate need of some serious TLC.

Challenge

The existing building had a zero degree concrete slab roof with a leaking bitumous membrane. Weight concerns and significant plant and ventilation requirements meant the options were limited as to which system to install.

The roofing system needed to be robust and possess the design flexibility to successfully waterproof the 200-plus penetrations of various sizes made by the significant extraction systems used to ventilate the faculty’s precious equipment. Alternative cementitious screed systems were considered for creating the required falls, but they would have been too heavy and were considered less practical in terms of the application required in these circumstances.

Using clause E2/AS1 of the Building Code as a benchmark, the architect specified that the dead flat (zero-degree) concrete slab roof substrate be cladded with a roofing system sloped to a minimum of two degrees.

Key Stats

Client: Uni of Otago

Client: Uni of Otago

Year: 2020

Project Partners: Company 1; Company 2; Company 3

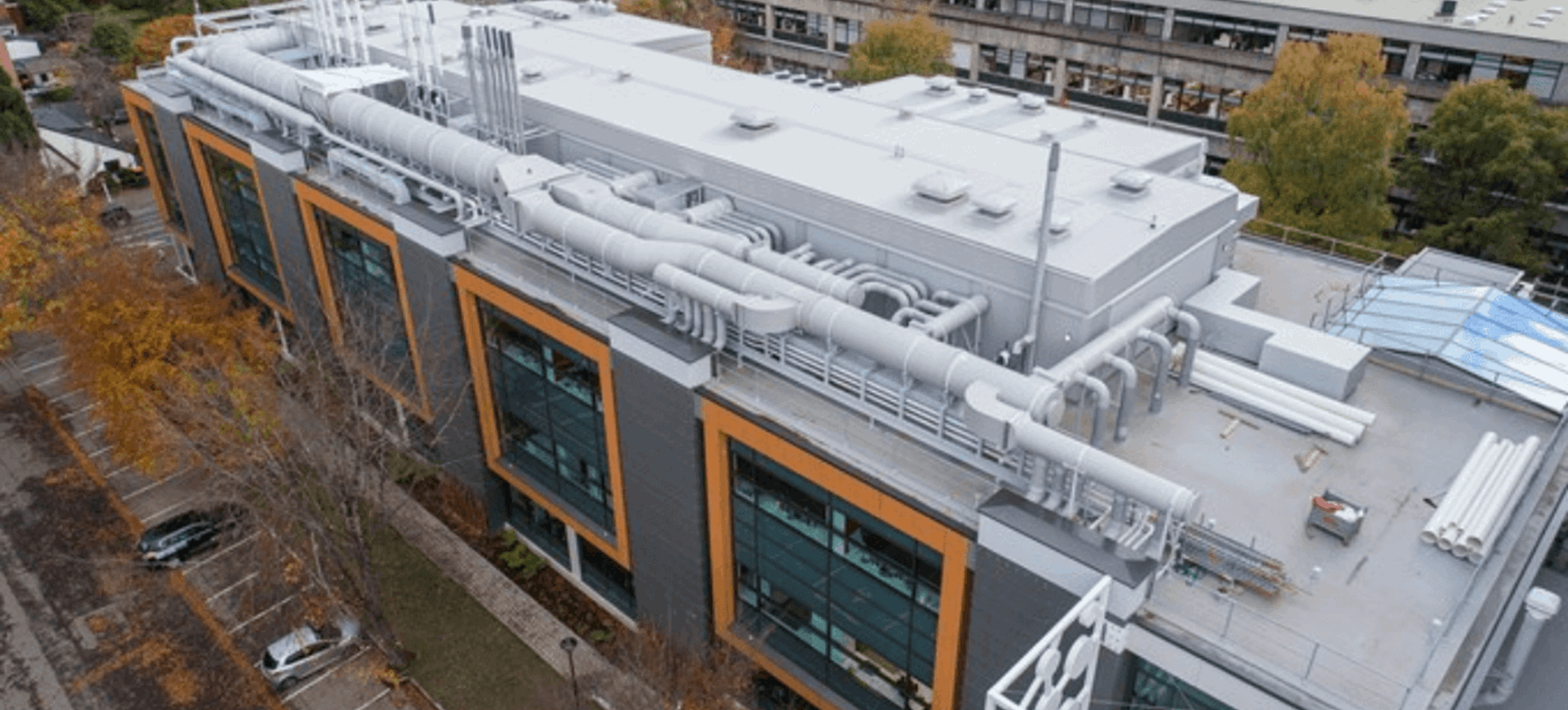

Viking Project Image

Solution

Viking Roofspec’s WarmRoof system provided the University of Otago with a fully-tapered scheme; specifically ‘shaped’ for this 1400m2 roof using Kingspan’s custom-tapered service from the UK.

Viking Enviroclad’s heat-weldable accessory range; with particular reference to its pipe seals and other penetration sealing system called ‘pourable pockets’, made Enviroclad the obvious membrane choice for the needs of this challenging roof. An added bonus is that Viking Enviroclad’s puncture resistance protected the polyiso sheets from the unavoidable large amount of foot traffic from other trades during construction.

One of the key reasons behind the success of this project was the skill and professionalism of the Approved Applicator Company installing the tapered warm roof system. Constructions materials only look and perform as well as their installation. As a materials supplier, Viking Roofspec aligns itself with the industry’s best contractors while having invested heavily in its three-staged licensing programme to ensure its materials are installed with pride and to specification.

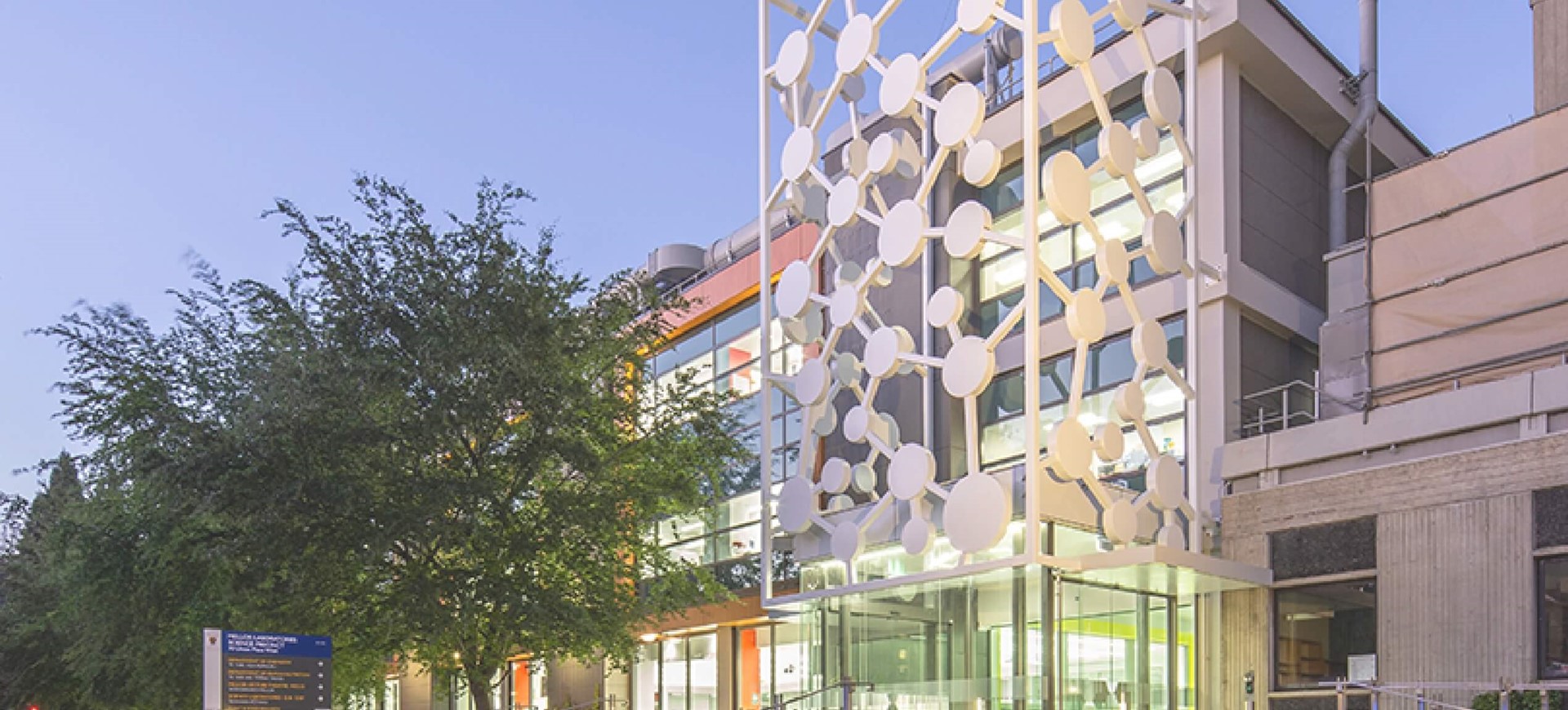

Web 20B

Result

To ensure the success of this complex; tax-payer funded job, the communication required between the multitudes of stakeholders needed to be: frequent; technically correct; efficient; and positive.

Stakeholders included: the University procurement staff; the architect; the construction company; project managers; council; shipping lines; storage companies; Kingspan NZ; Kingspan UK; the Approved Applicator and Viking Roofspec.

The finished result would indicate that this was achieved and all stakeholders involved are extremely pleased with the overall finished product.

Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt ut labore.
JOE BLOGGS, COMPANY LTD

Enviroclad TPO Details and Documents

The benefit for building owners is Viking Enviroclad's proven performance in New Zealand conditions, having been installed on thousands of buildings and homes across New Zealand and the Pacific Islands since 2007.

Download Technical Specs

Sample Image Link Item

Istockphoto 1149434189 2048X2048

Title

RhinoBond Mechanical Fastening

RhinoBond is an induction-fastening technology that provides an alternative method of bonding the Viking Enviroclad membrane to a wide range of substrates; eliminating the need for adhesive.

It's mechanical fastening method, surprisingly does not involve penetrating the membrane.

A specialised induction machine emits an electromagnetic charge down through the membrane surface, that welds the underside of the Enviroclad to the top of specialised TPO coated washers (plates) which are screwed in a grid pattern to the substrate

This is a great option for installing membrane in challenging weather and cold conditions where adhesives struggle to perform.
