WarmSpan²

WarmSpan² w Enviroclad Details - Full Set

Select all

rvt

pdf

Index

Select all

rvt

pdf

dwg

Revit Notes

Select all

rvt

pdf

dwg

Best Practice Design in Membrane Roofing

Select all

rvt

pdf

dwg

Outlet and Overflow 001

Select all

rvt

pdf

dwg

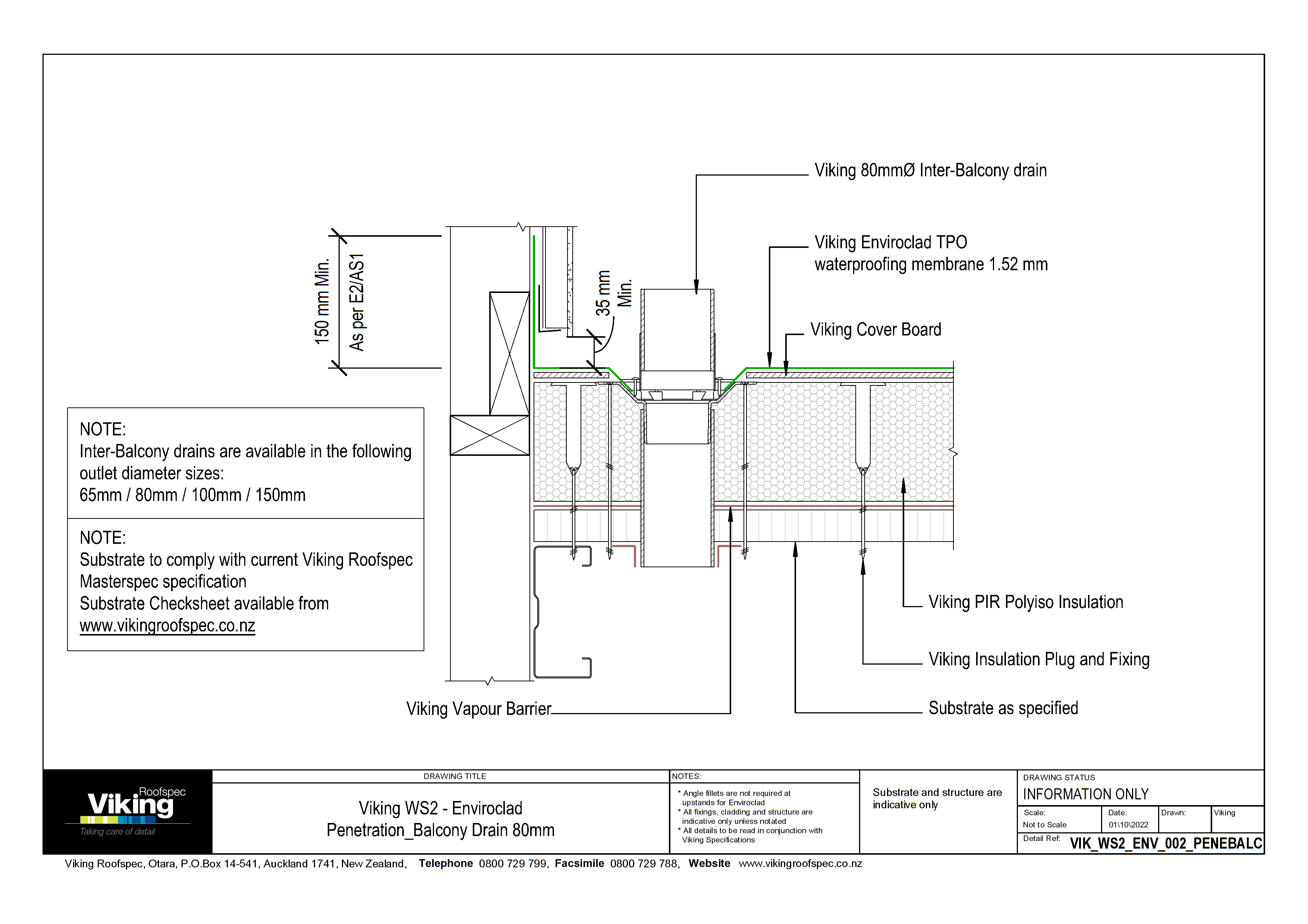

Balcony Drain 80mm 002

Select all

rvt

pdf

dwg

Sump Outlet with Overflow 003

Select all

rvt

dwg

pdf

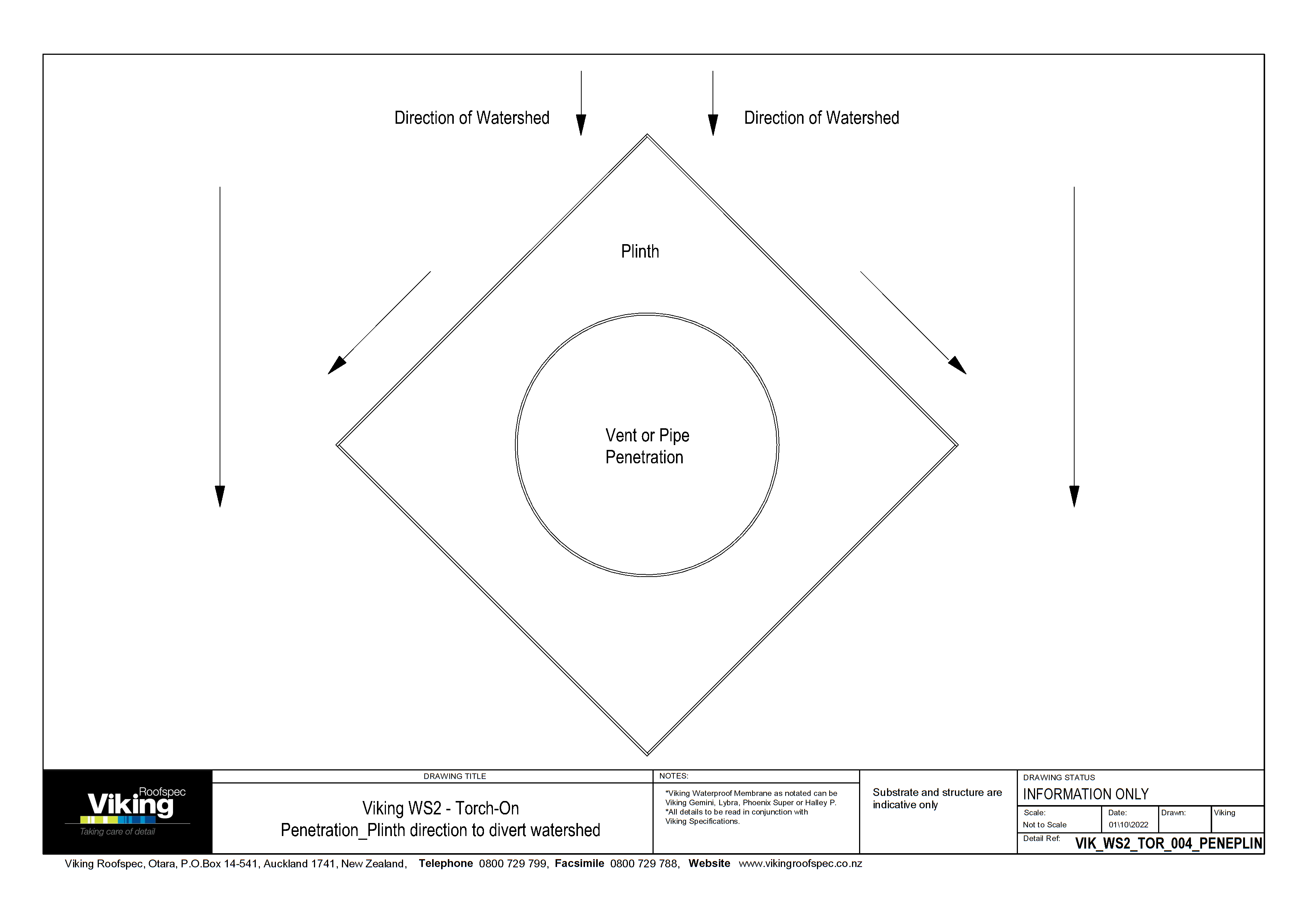

Plinth Direction to Divert Watershed 004

Select all

rvt

pdf

dwg

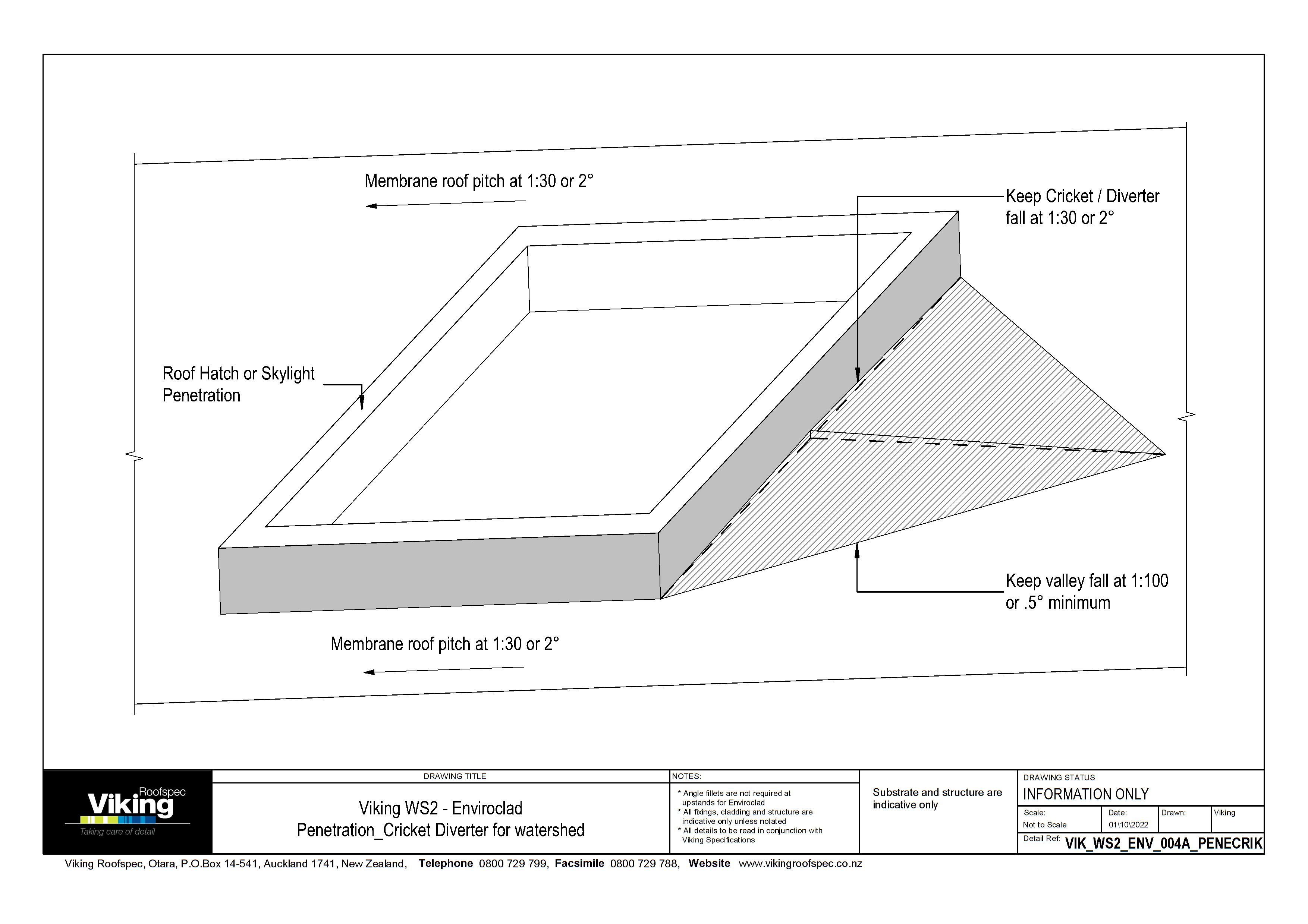

Cricket Diverter for Watershed 004a

Select all

rvt

pdf

dwg

Vertical Pipe 005

Select all

rvt

pdf

dwg

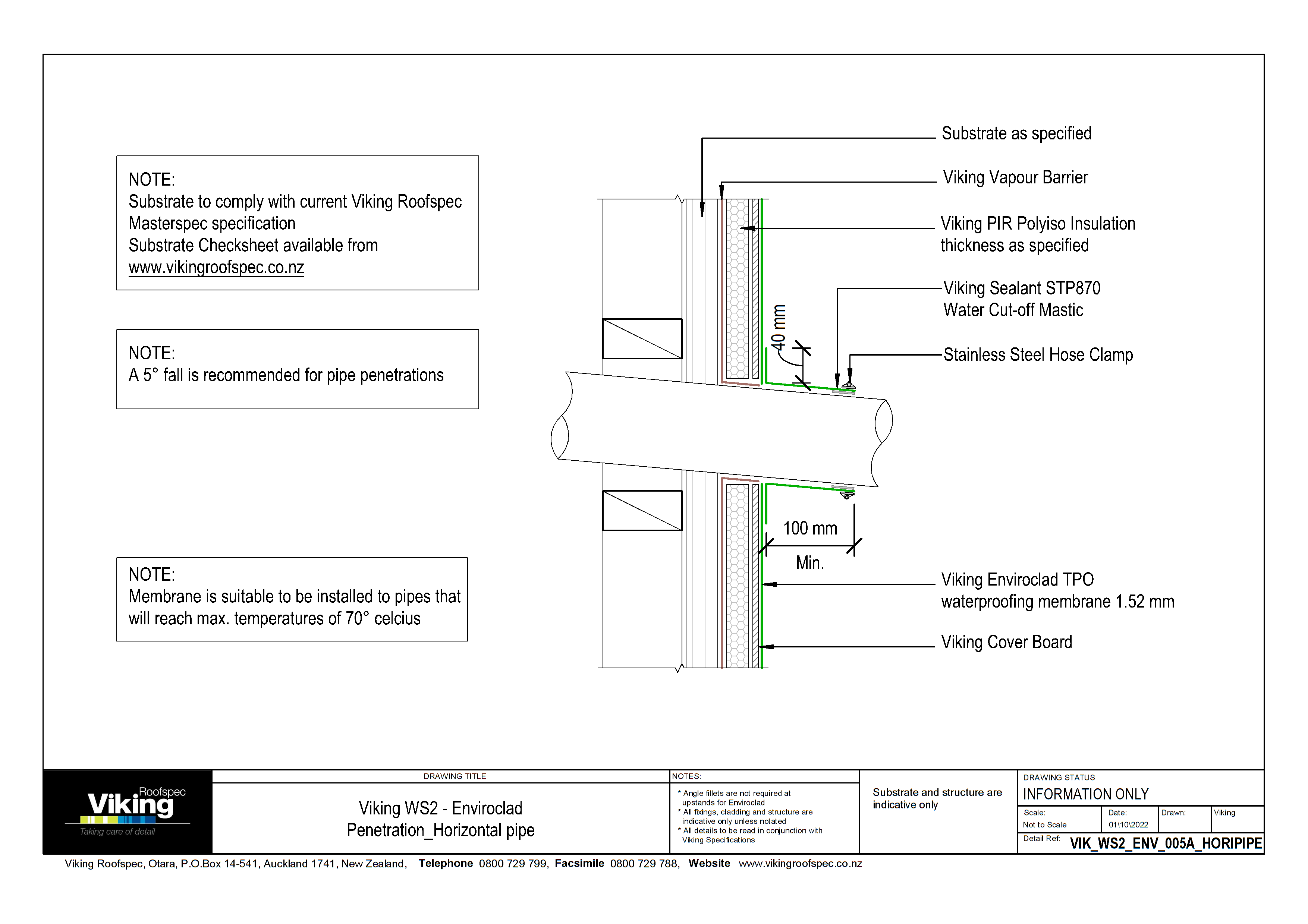

Horizontal Ducting Pipe 005a

Select all

rvt

pdf

dwg

Vertical Ducting Pipe 006

Select all

rvt

pdf

dwg

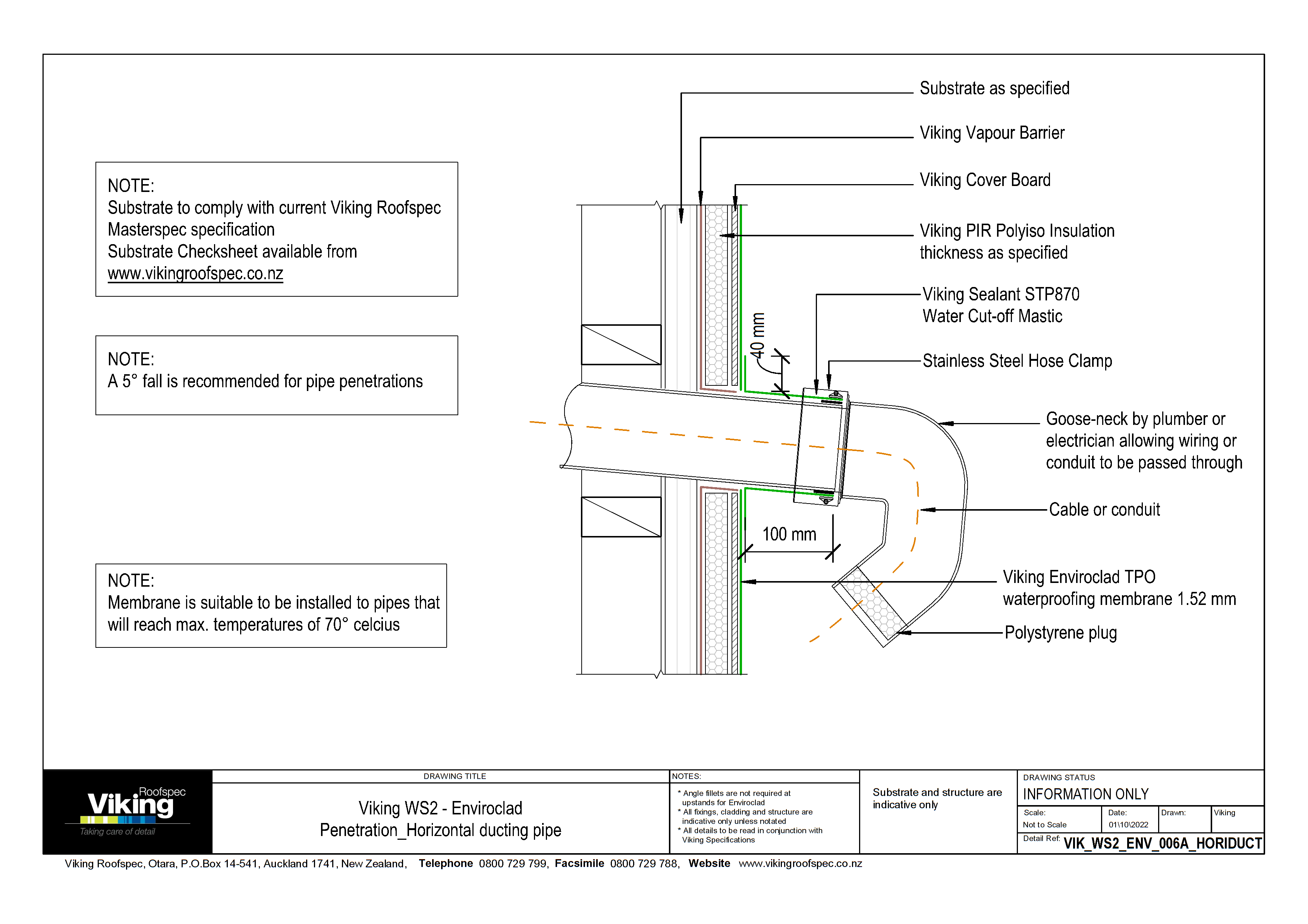

Horizontal Ducting Pipe 006a

Select all

rvt

pdf

dwg

Flue or Oversize Pipe 007

Select all

rvt

pdf

dwg

Skylight or Roof Access Hatch 008

Select all

rvt

pdf

dwg

Square Post through Decking 009

Select all

rvt

pdf

dwg

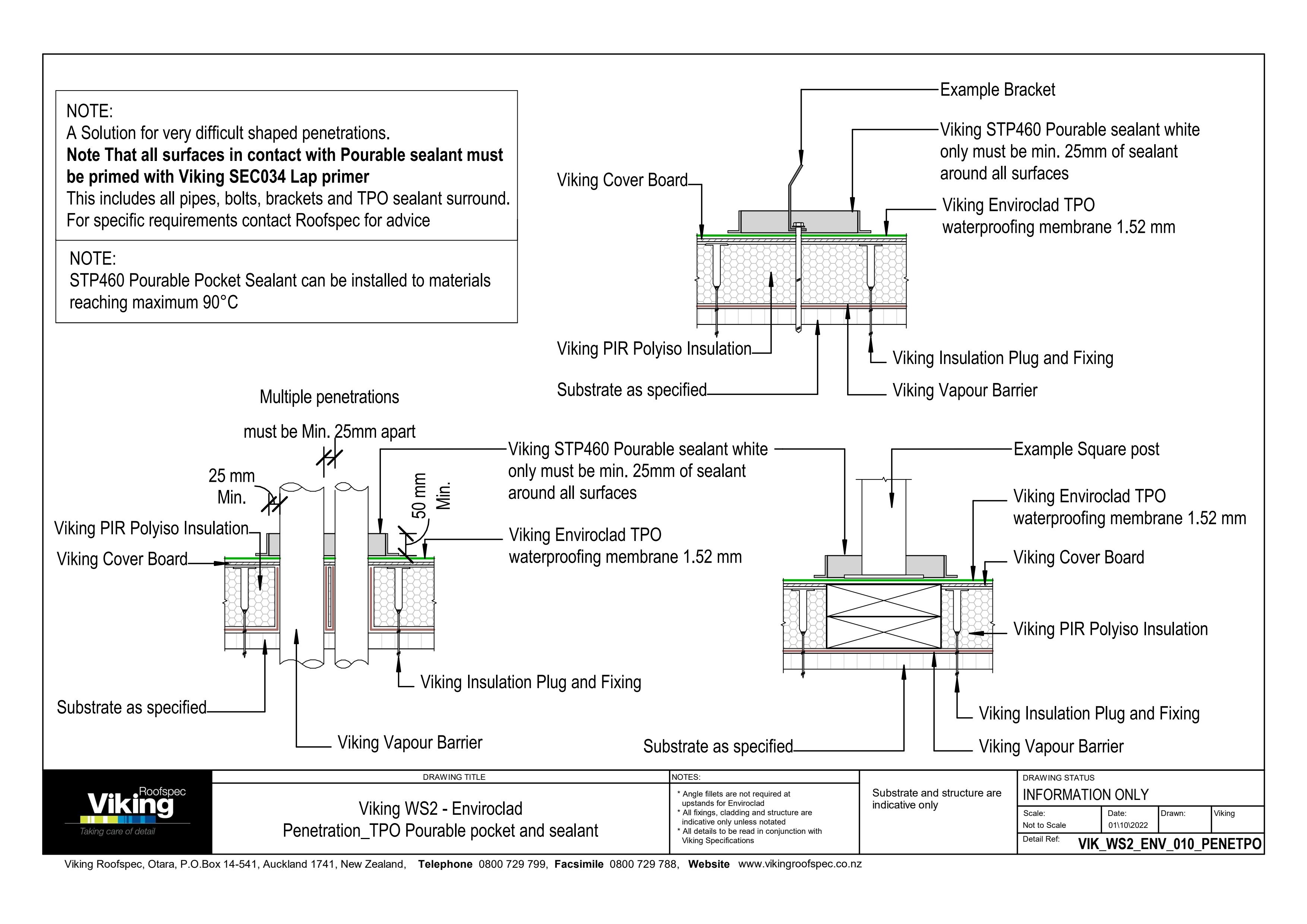

TPO Pourable Pocket and Sealant 010

Select all

rvt

pdf

dwg

Post or Rail for Plant Room Equipment 011

Select all

rvt

pdf

dwg

Plinth Base for Balustrade 012

Select all

rvt

pdf

dwg

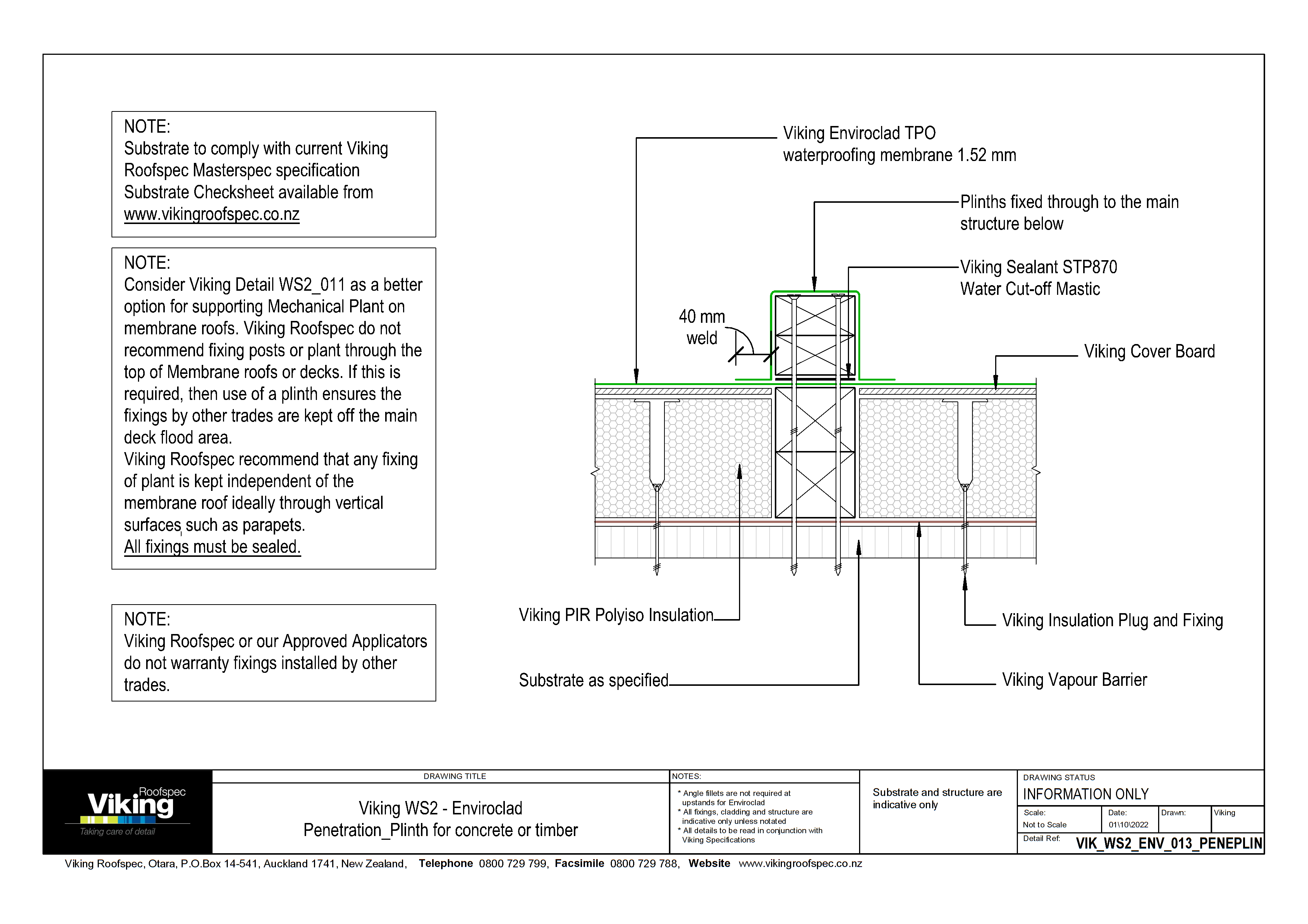

Plinth for Concrete or Timber 013

Select all

rvt

pdf

dwg

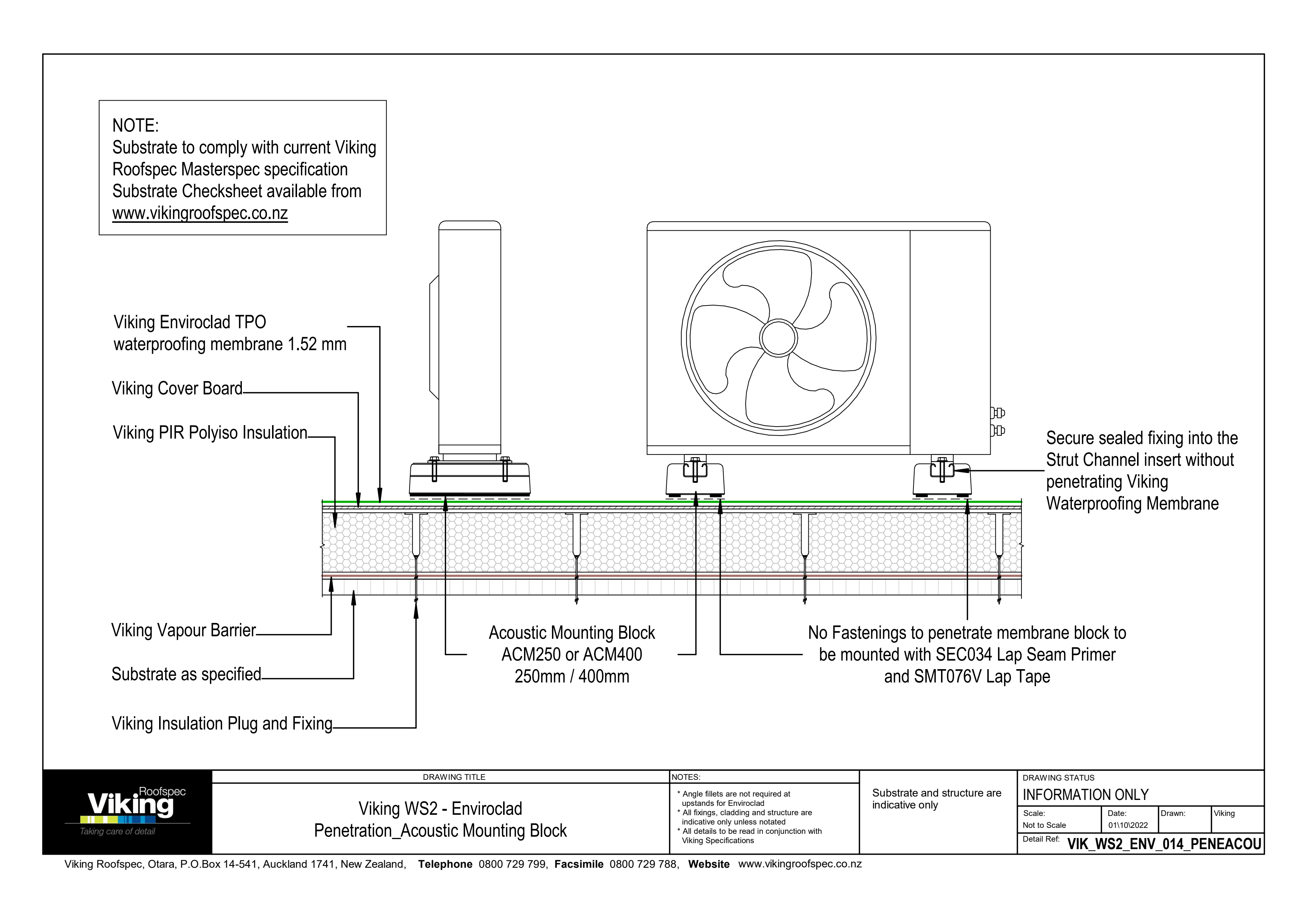

Acoustic Mounting Block 014

Select all

rvt

pdf

dwg

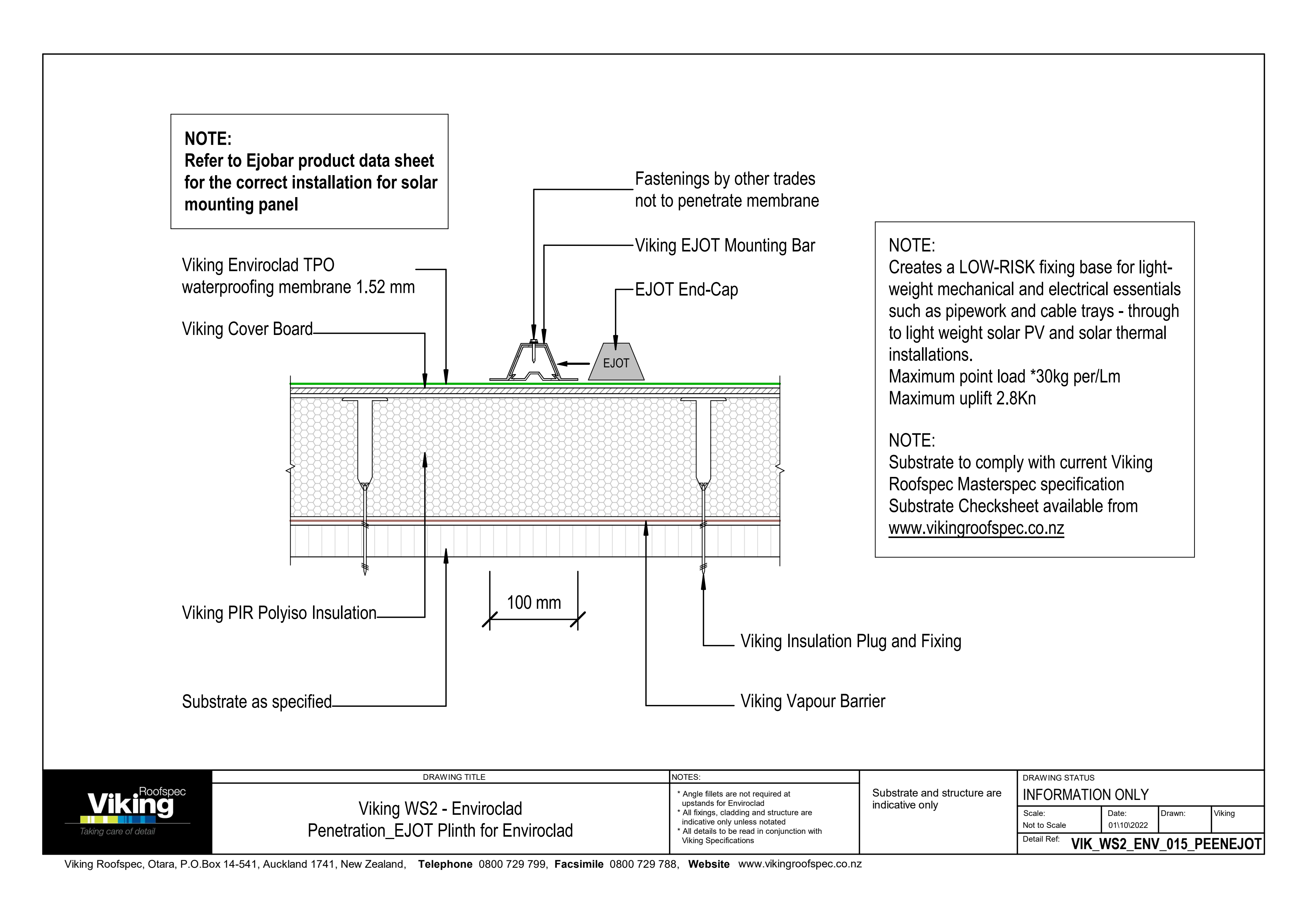

EJOT Plinth for Enviroclad 015

Select all

rvt

pdf

dwg

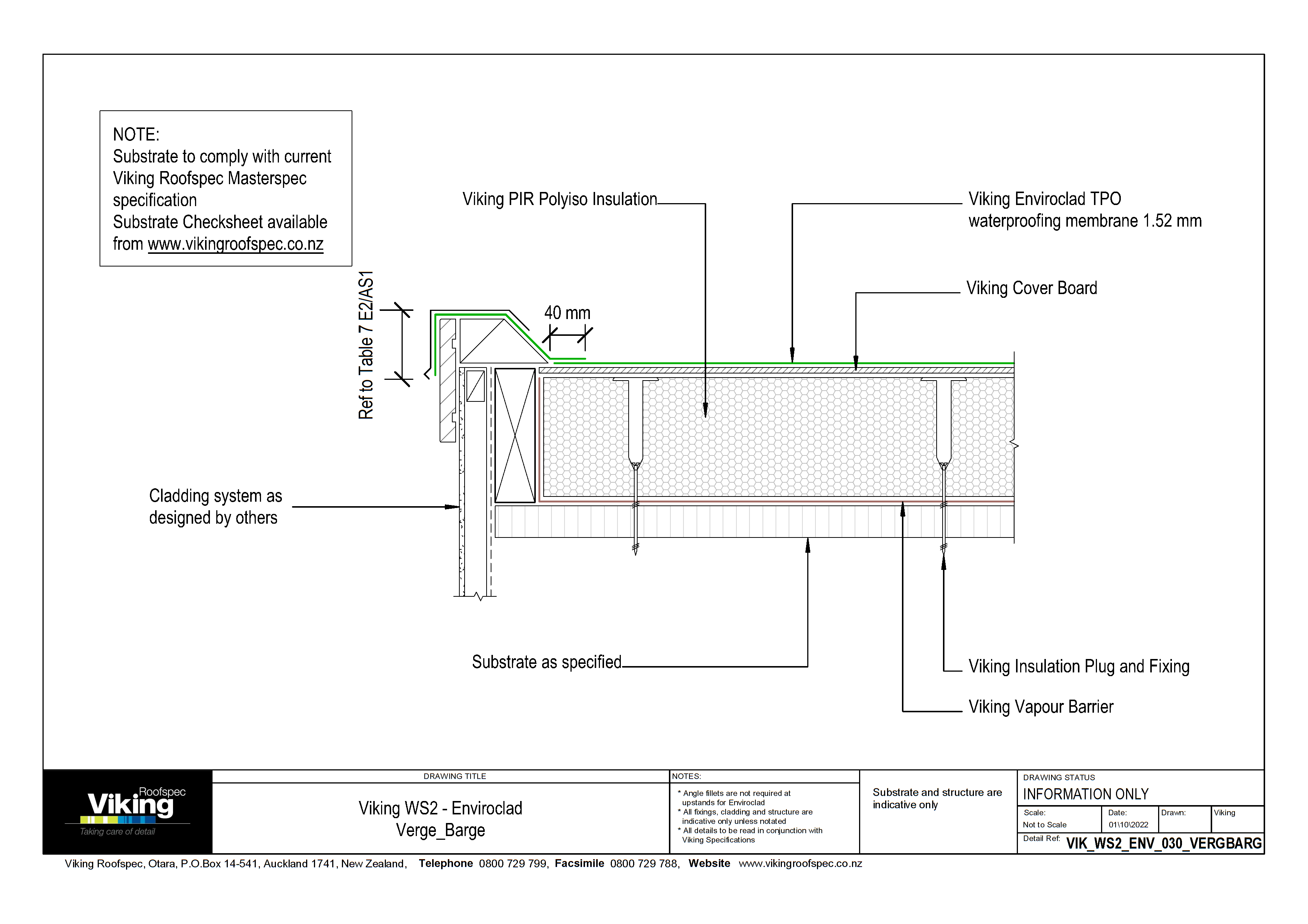

Verge Barge 030

Select all

rvt

pdf

dwg

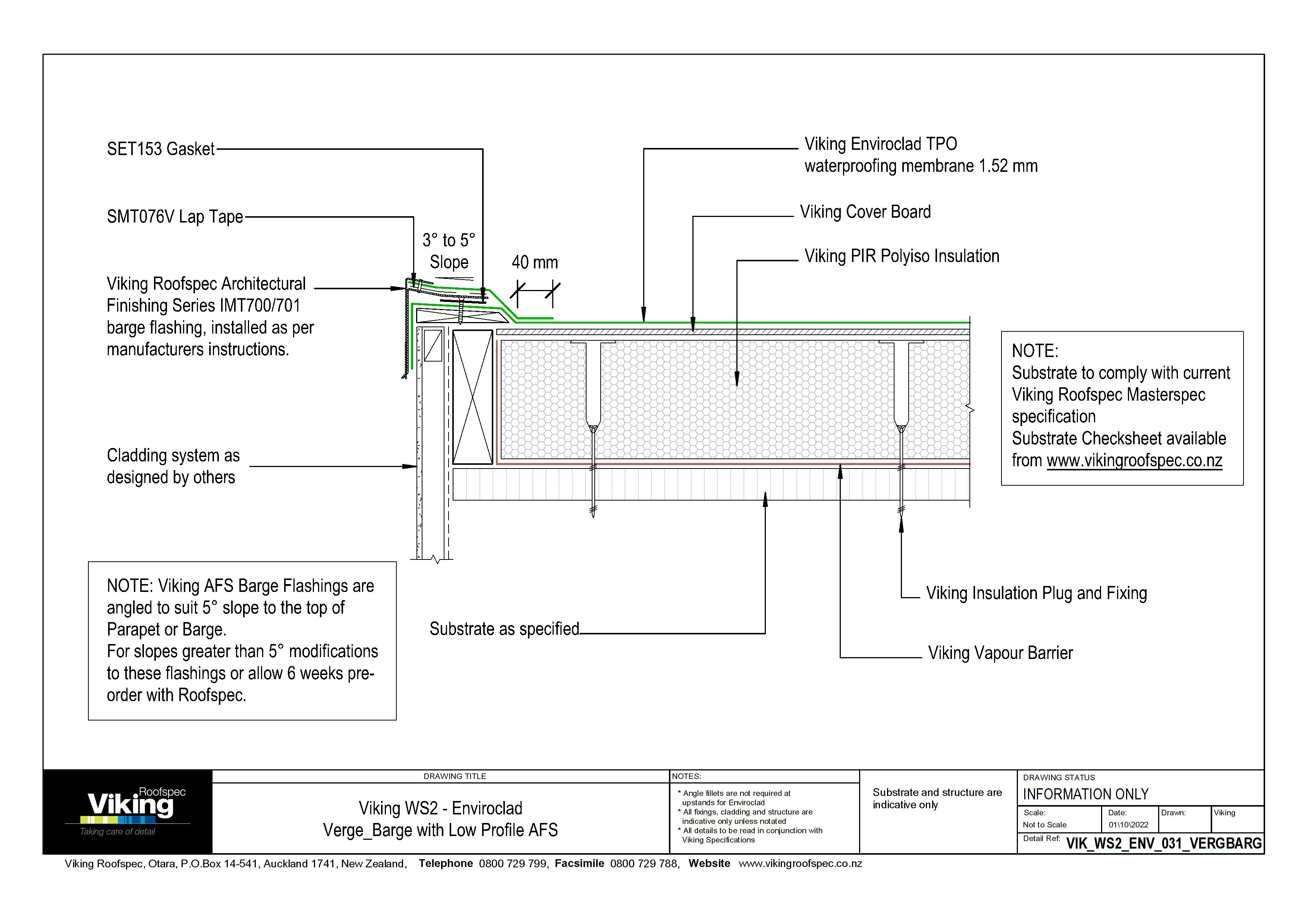

Verge Barge with Low-Profile AFS 031

Select all

rvt

pdf

dwg

Verge Barge with Low-Profile AFS in Isometric 031a

Select all

rvt

pdf

dwg

Drip Edge to External Spouting 032

Select all

rvt

pdf

dwg

Verge Edge with Wall Continuing - Diverter for Cladding 033

Select all

rvt

pdf

dwg

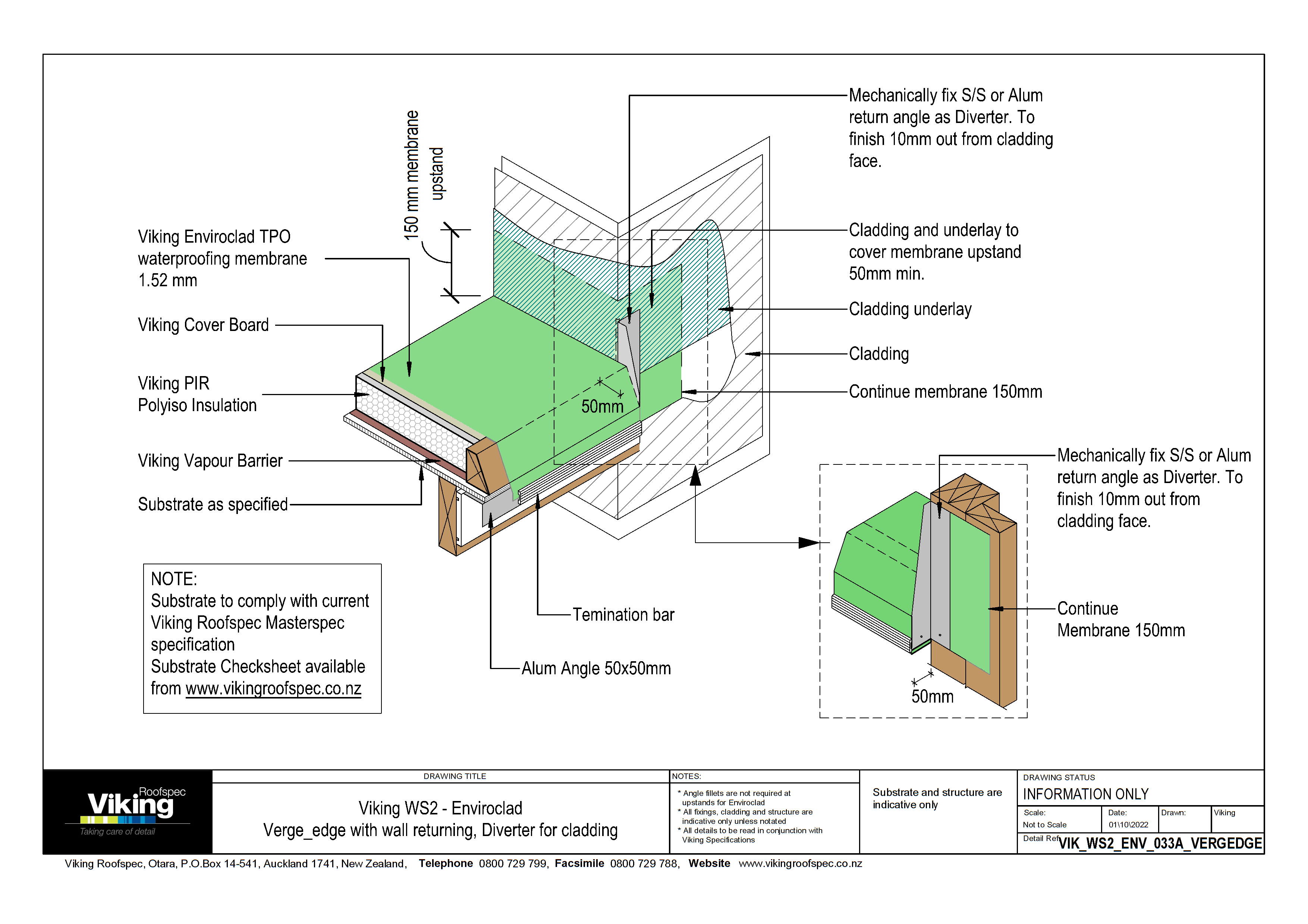

Verge Edge with Wall Returning - Diverter for Cladding 033a

Select all

rvt

pdf

dwg

Parapet with Cap Concrete Wall 040

Select all

rvt

pdf

dwg

Parapet Timber Wall ISO 040a

Select all

rvt

pdf

dwg

Parapet with Scupper Outlet 041

Select all

rvt

pdf

dwg

Parapet with Overflow 042

Select all

rvt

pdf

dwg

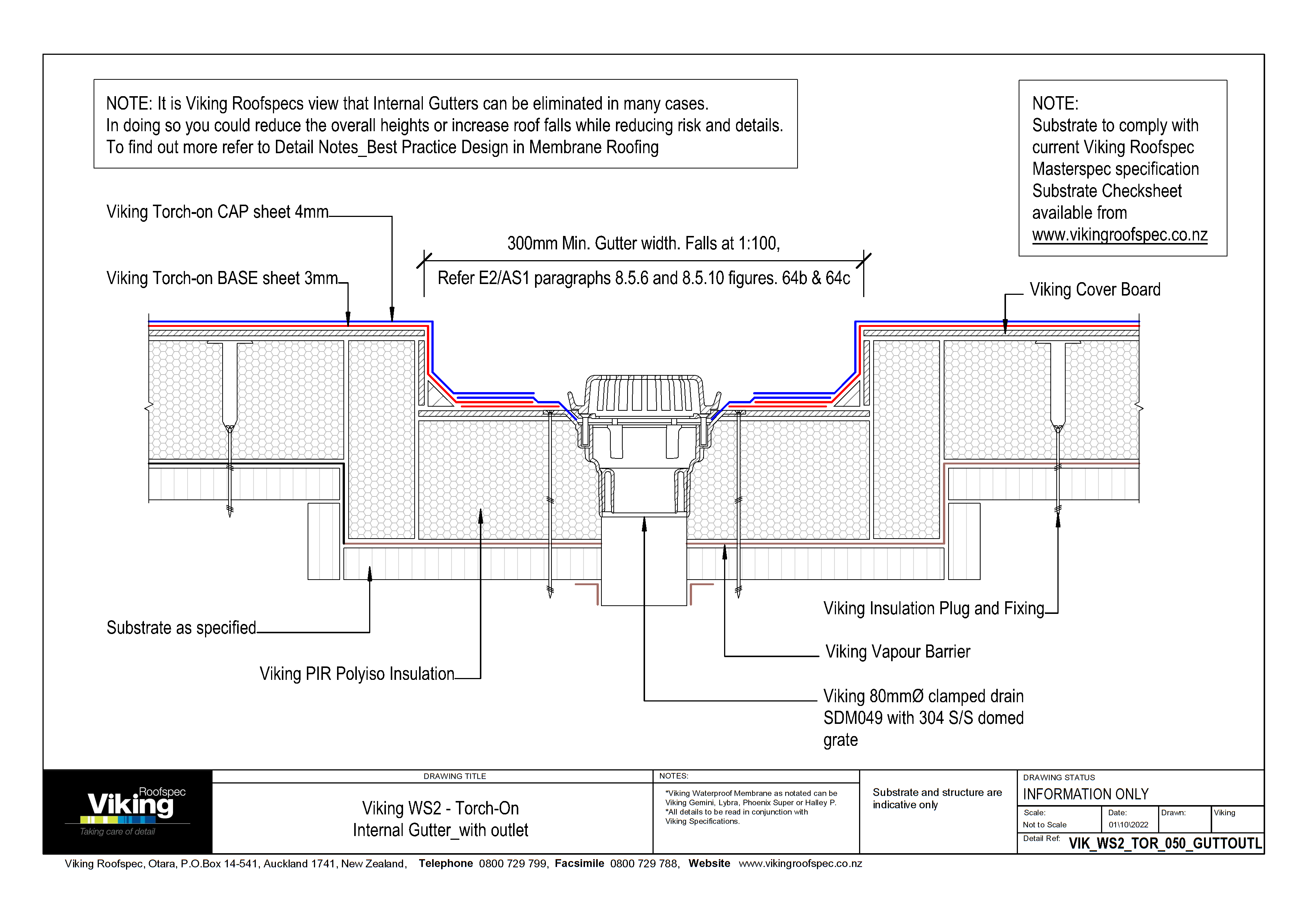

Internal Gutter with Outlet 050

Select all

rvt

pdf

dwg

Internal Gutter to Wall 051

Select all

rvt

pdf

dwg

Internal Gutter with Outlet / Overflow 052

Select all

rvt

pdf

dwg

Intersection - External Corner 060

Select all

rvt

pdf

dwg

Intersection - Internal Corner 061

Select all

rvt

pdf

dwg

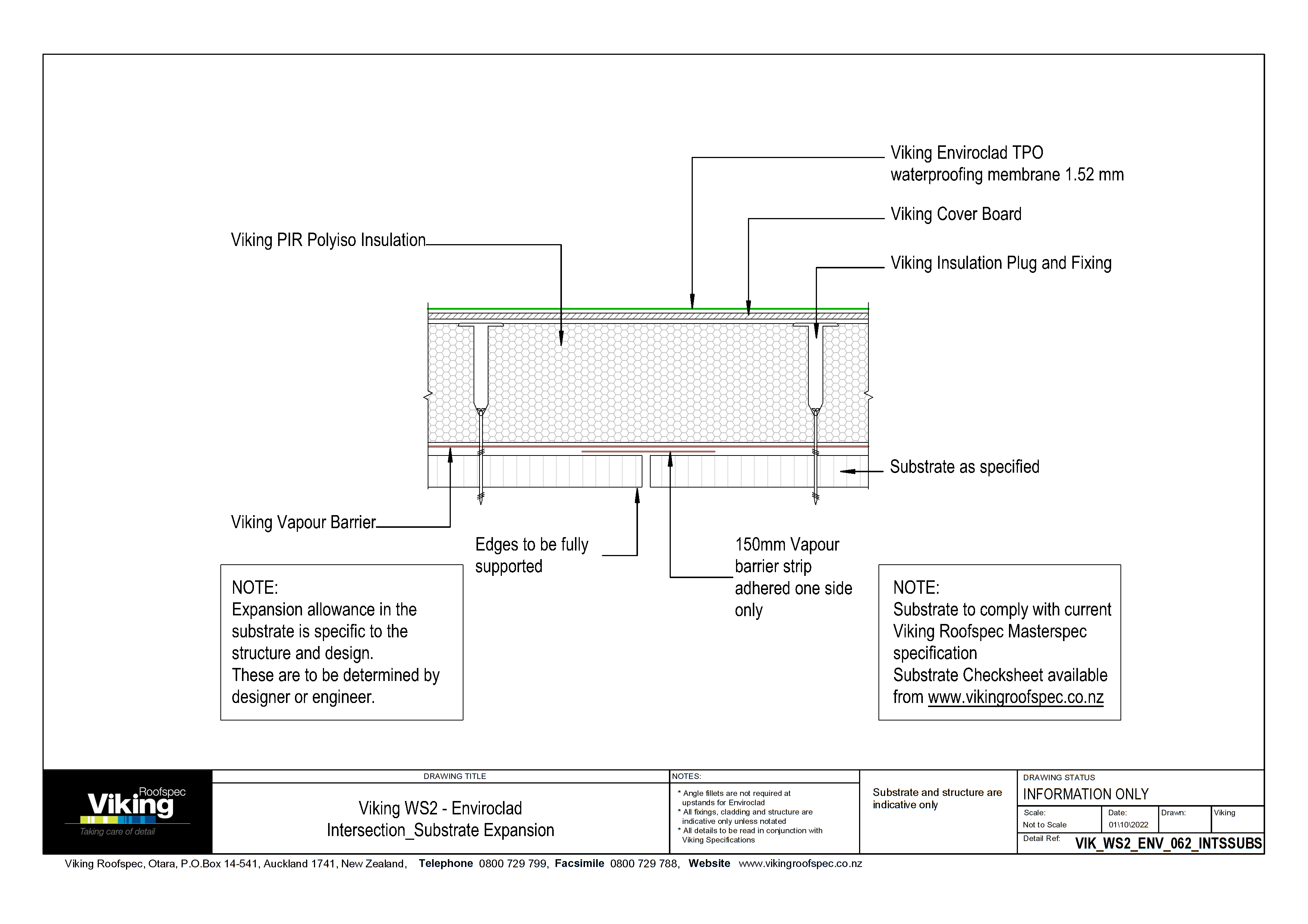

Intersection - Substrate Expansion 062

Select all

rvt

pdf

dwg

Intersection - Substrate Expansion to Concrete 062a

Select all

rvt

pdf

dwg

Intersection - Seismic Gap Generic 063

Select all

rvt

pdf

dwg

Intersection - Ridge / Hip 064

Select all

rvt

pdf

dwg

Intersection - Valley 065

Select all

rvt

pdf

dwg

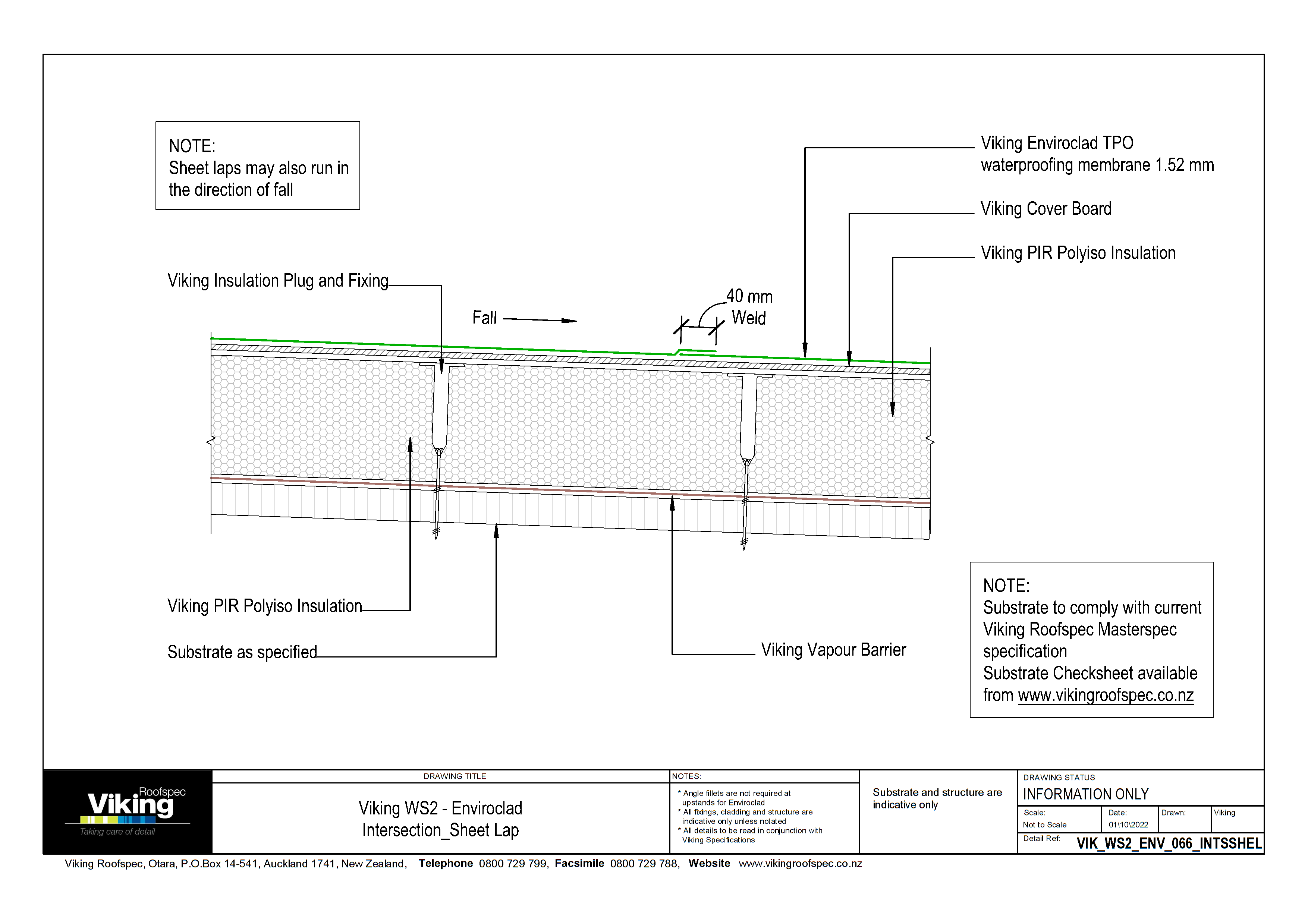

Intersection - Sheet Lap 066

Select all

rvt

pdf

dwg

Intersection - Sheet T-Joint 067

Select all

rvt

pdf

dwg

Intersection - Lap Transition 068

Select all

rvt

pdf

dwg

Junction - Upstand to Pitched Roofing 070

Select all

rvt

pdf

dwg

Junction - Metal Roof to Internal Gutter 072

Select all

rvt

pdf

dwg

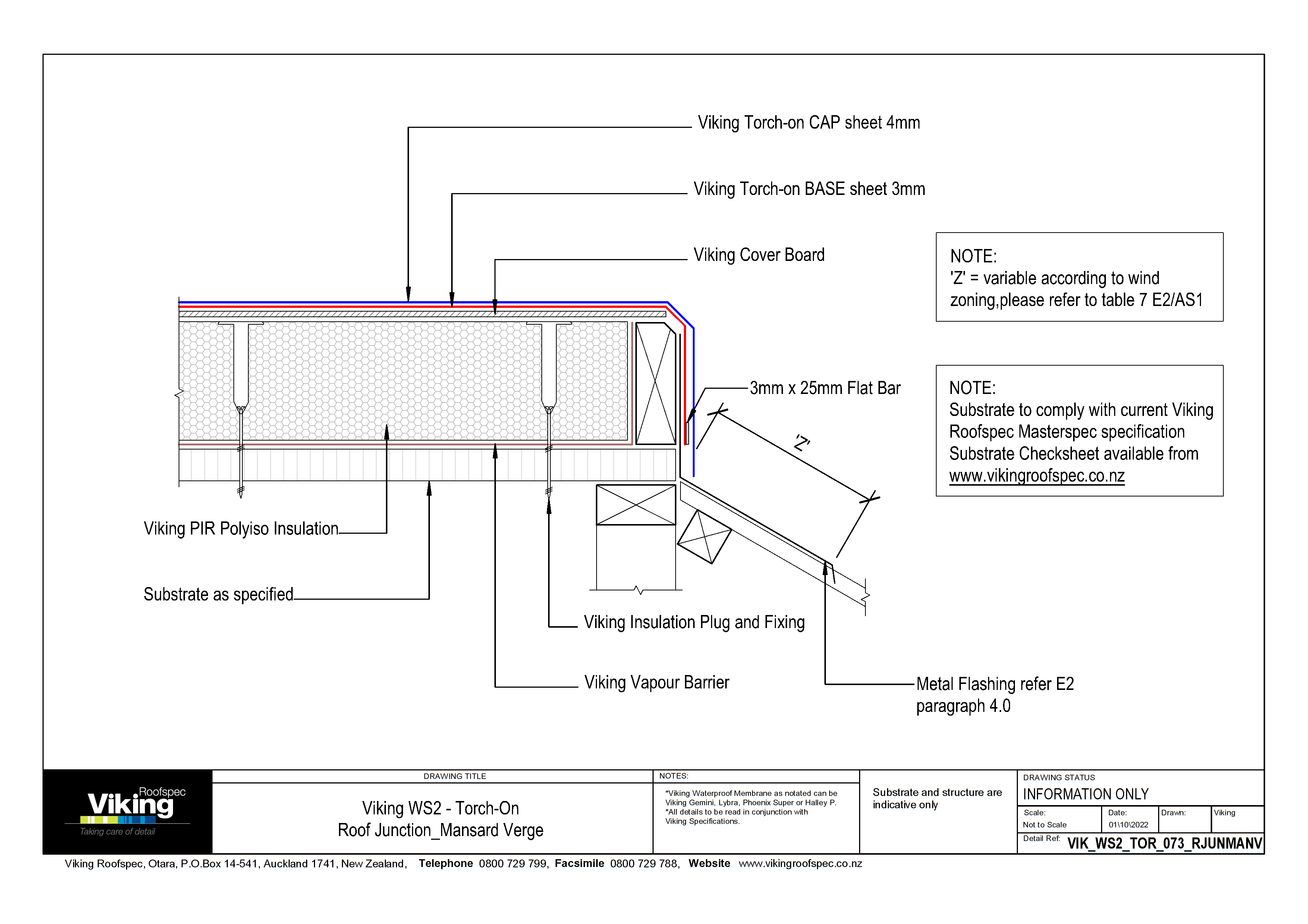

Junction - Mansard Verge 073

Select all

rvt

pdf

dwg

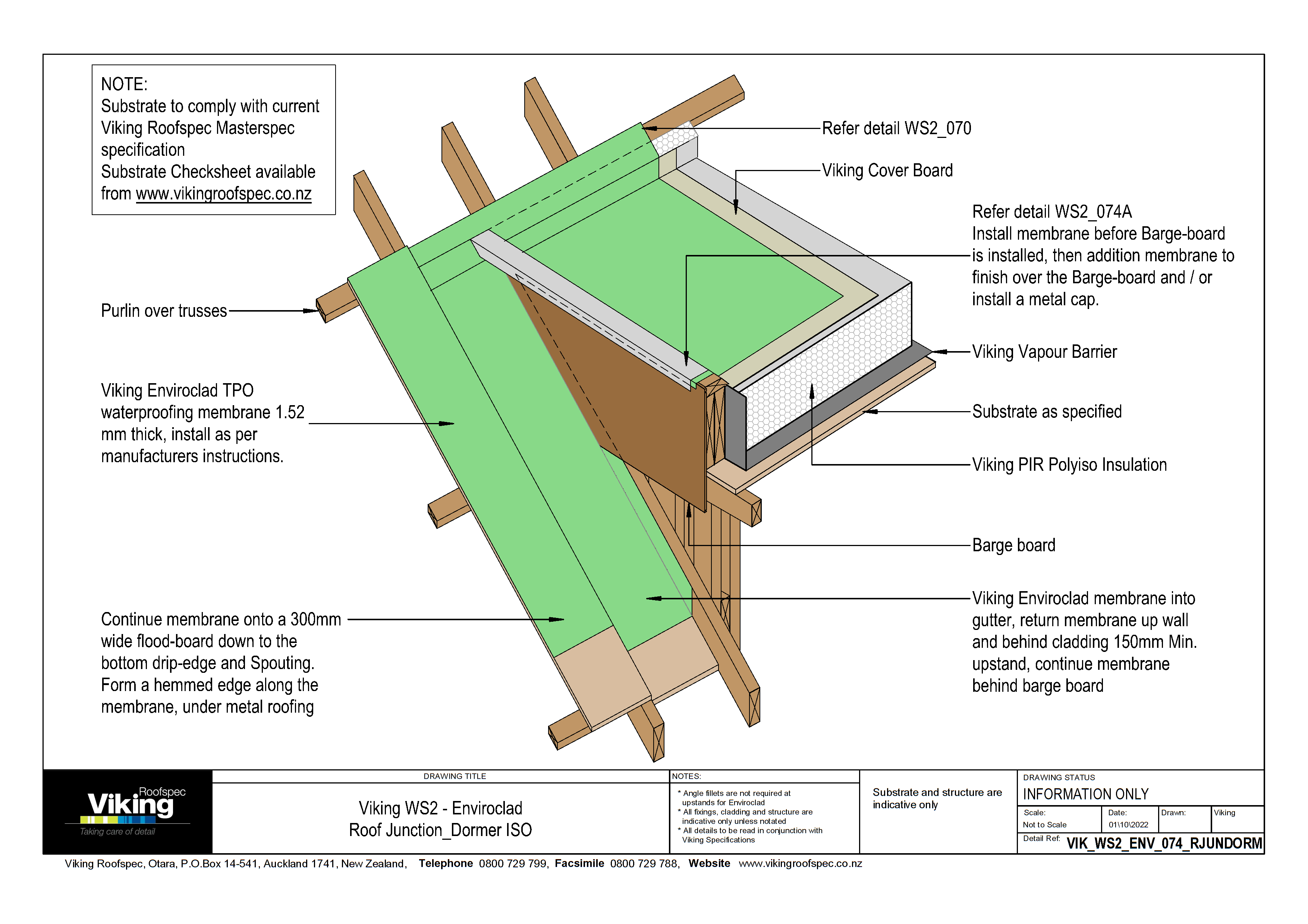

Junction - Dormer ISO 074

Select all

rvt

pdf

dwg

Junction - Dormer Gutter 074a

Select all

rvt

pdf

dwg

Apron Upstand behind Cladding 080

Select all

rvt

pdf

dwg

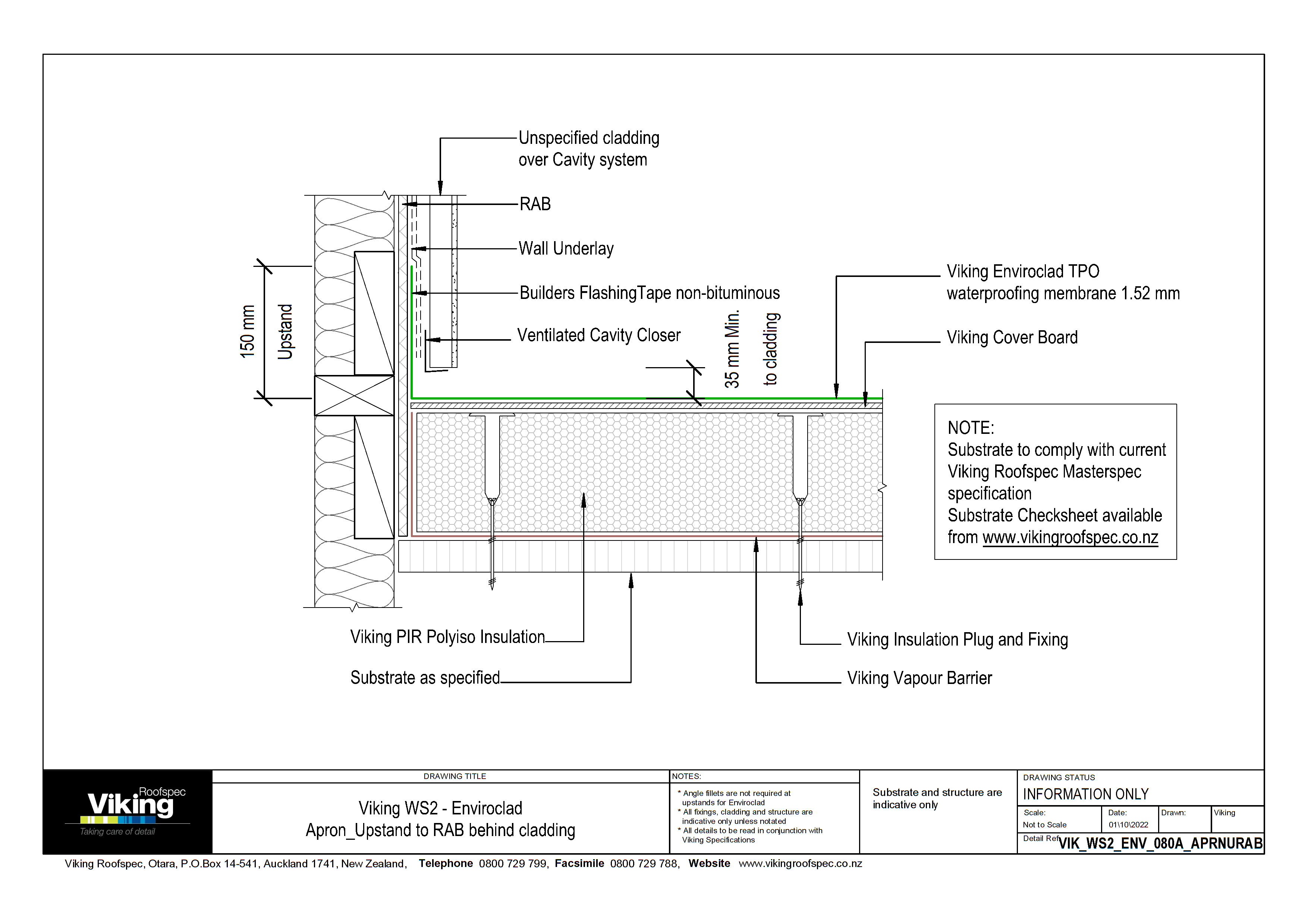

Apron Upstand to RAB behind Cladding 080a

Select all

rvt

pdf

dwg

Apron Upstand Terminations without Cladding 081

Select all

rvt

pdf

dwg

Threshold Window 091

Select all

rvt

pdf

dwg

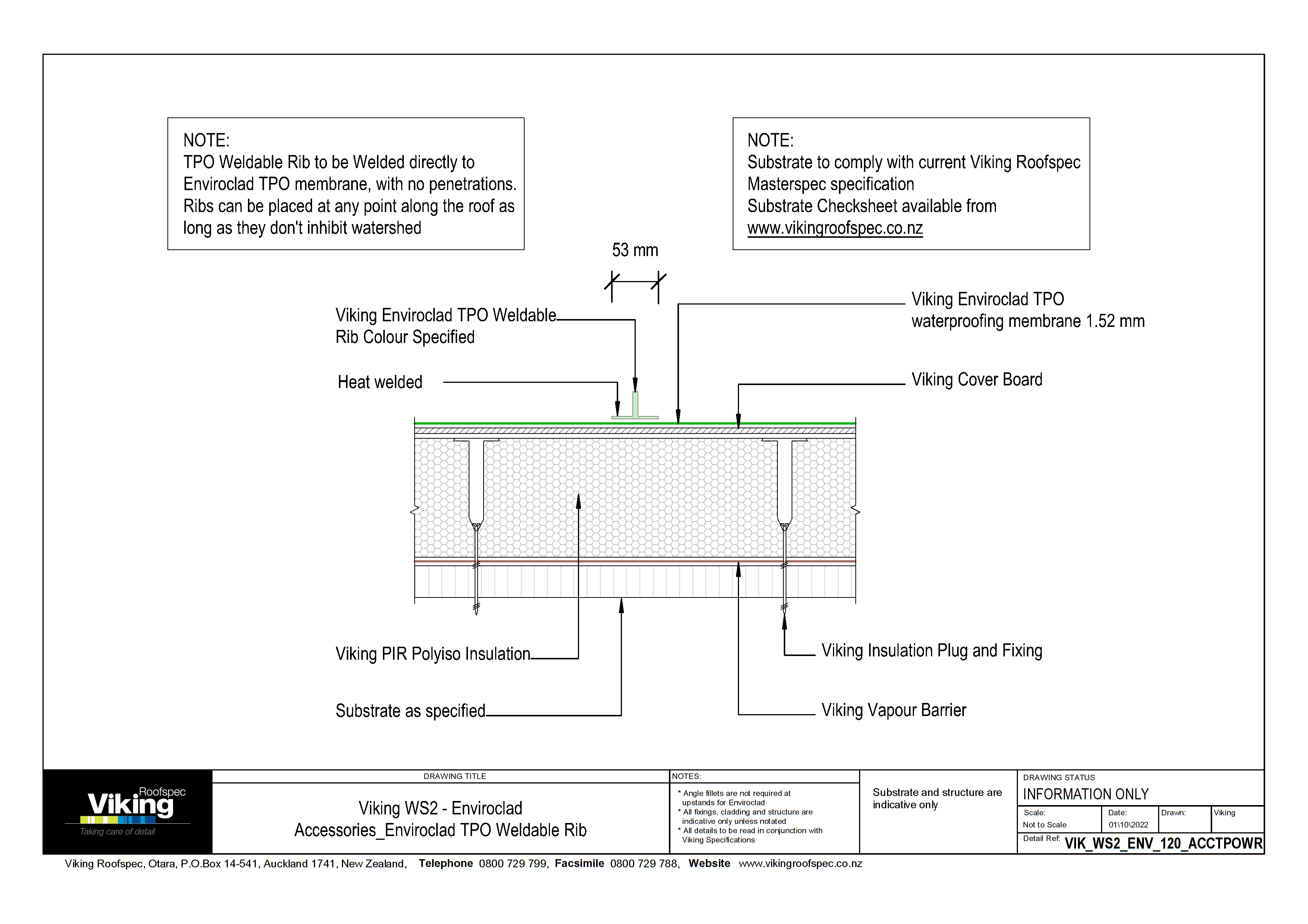

Accessories Enviro TPO Weldable Rib 120

Select all

rvt

pdf

dwg

WarmSpan2 w Torch-On Details - Full Set

Select all

rvt

pdf

Index

Select all

rvt

pdf

dwg

Revit Notes

Select all

rvt

pdf

dwg

Best Practice Design in Membrane Roofing

Select all

rvt

pdf

dwg

Outlet and Overflow 001

Select all

rvt

pdf

dwg

Balcony Drain 80mm 002

Select all

rvt

pdf

dwg

Plinth Direction to Divert Watershed 004

Select all

rvt

pdf

dwg

Cricket Diverter for Watershed 004a

Select all

rvt

pdf

dwg

Vertical Pipe 005

Select all

rvt

pdf

dwg

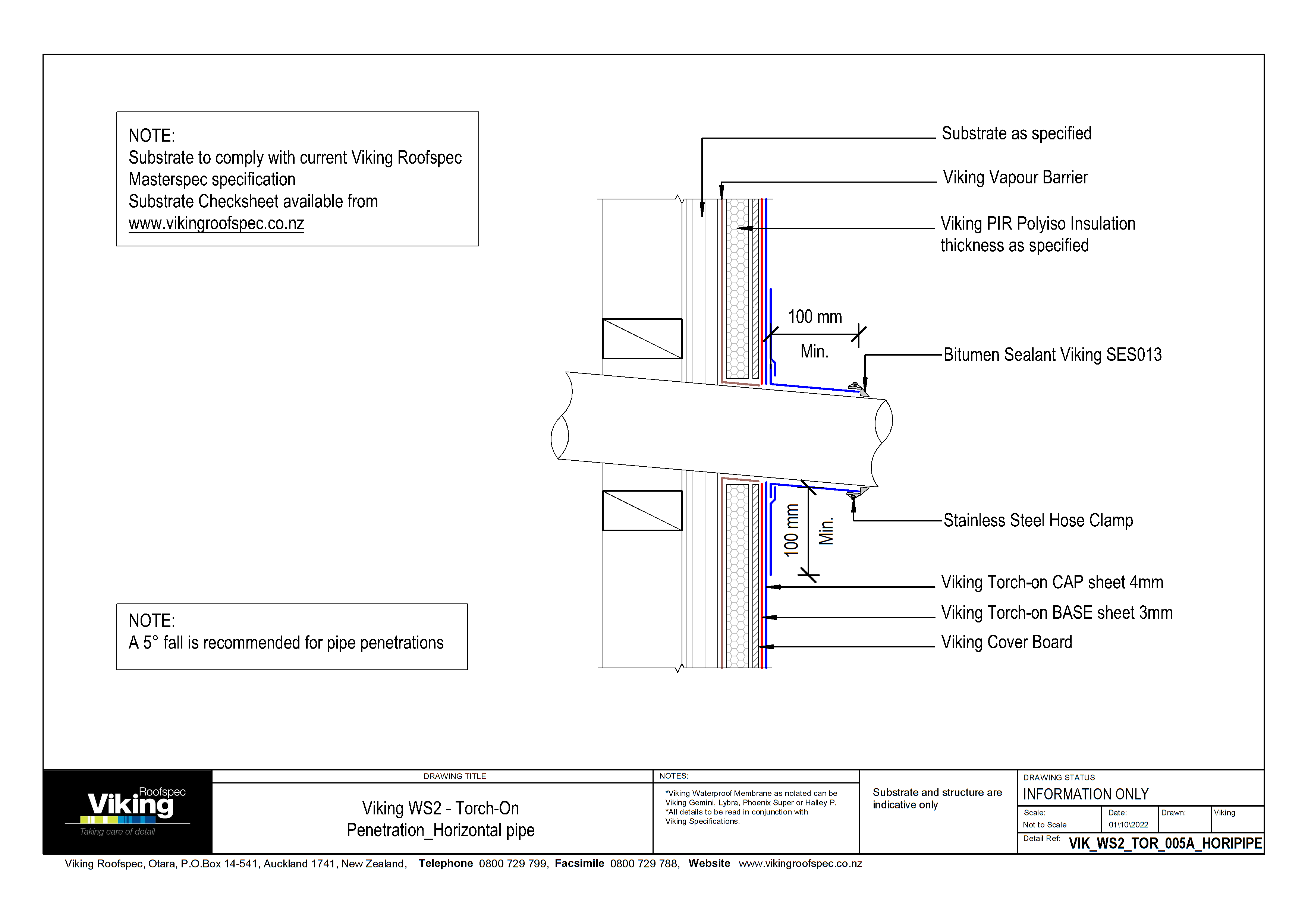

Horizontal Ducting Pipe 006a

Select all

rvt

pdf

dwg

Vertical Ducting Pipe 006

Select all

rvt

pdf

dwg

Horizontal Ducting Pipe 006a

Select all

rvt

pdf

dwg

Flue or Oversize Pipe 007

Select all

rvt

pdf

dwg

Skylight or Roof Access Hatch 008

Select all

rvt

pdf

dwg

Square Post through Decking 009

Select all

rvt

pdf

dwg

Post or Rail for Plant Room Equipment 011

Select all

rvt

pdf

dwg

Plinth Base for Balustrade 012

Select all

rvt

pdf

dwg

Plinth for Concrete or Timber 013

Select all

rvt

pdf

dwg

Acoustic Mounting Block 014

Select all

rvt

pdf

dwg

Verge Barge 030

Select all

rvt

pdf

dwg

Verge Barge with Low-Profile AFS 031

Select all

rvt

pdf

dwg

Verge Barge with Low-Profile AFS in Isometric 031a

Select all

rvt

pdf

dwg

Drip Edge to External Spouting 032

Select all

rvt

pdf

dwg

Verge Edge with Wall Continuing - Diverter for Cladding 033

Select all

rvt

pdf

dwg

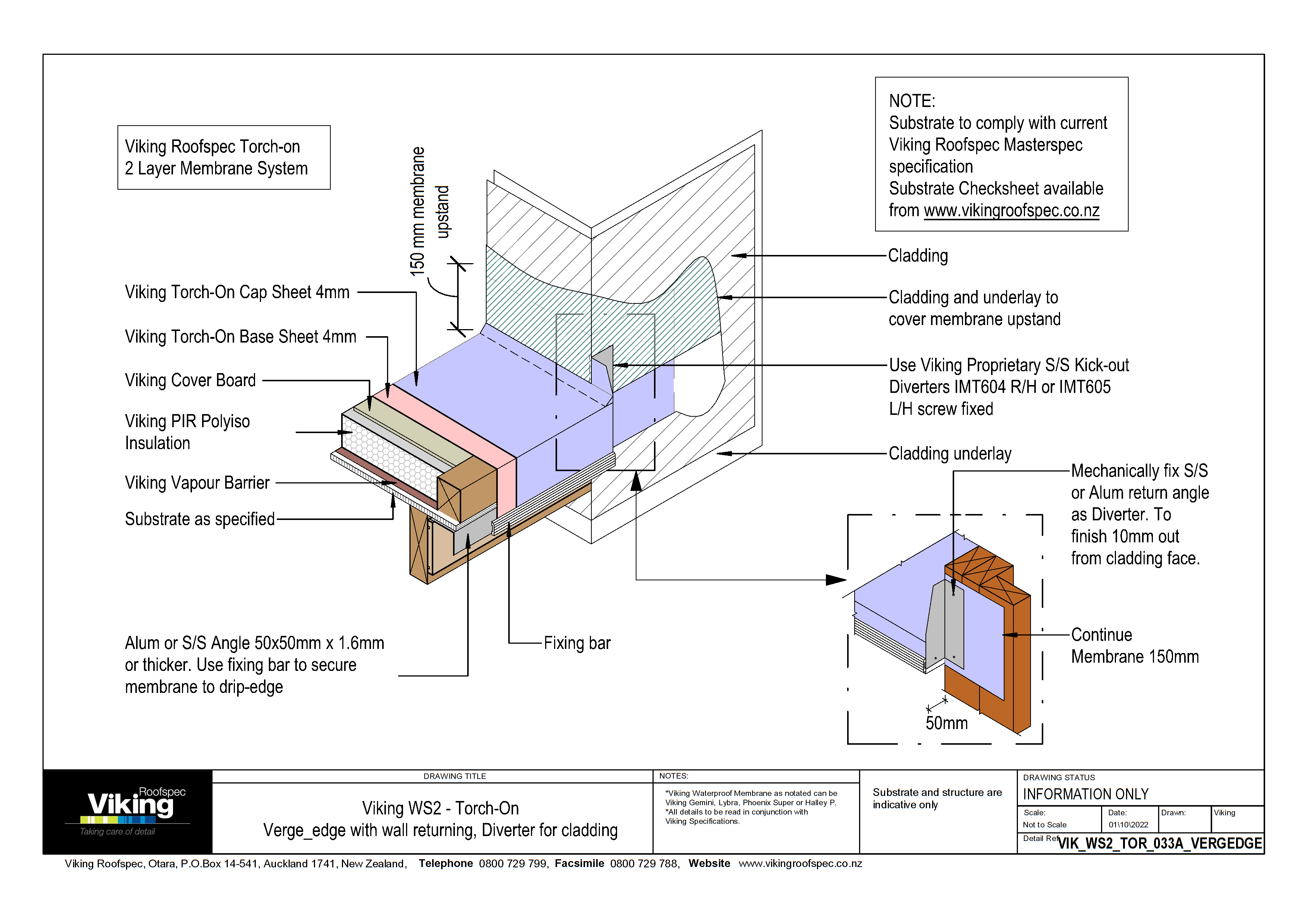

Verge Edge with Wall Returning - Diverter for Cladding 033a

Select all

rvt

pdf

dwg

Parapet with Cap Concrete Wall 040

Select all

rvt

pdf

dwg

Parapet Timber Wall ISO 040a

Select all

rvt

pdf

dwg

Parapet with Scupper Outlet 041

Select all

rvt

pdf

dwg

Parapet with Overflow 042

Select all

rvt

pdf

dwg

Internal Gutter with Outlet 050

Select all

rvt

pdf

dwg

Internal Gutter to Wall 051

Select all

rvt

pdf

dwg

Internal Gutter with Outlet / Overflow 052

Select all

rvt

pdf

dwg

Intersection - External Corner 060

Select all

rvt

pdf

dwg

Intersection - Internal Corner 061

Select all

rvt

pdf

dwg

Intersection - Substrate Expansion 062

Select all

rvt

pdf

dwg

Intersection - Substrate Expansion to Concrete 062a

Select all

rvt

pdf

dwg

Intersection - Seismic Gap Generic 063

Select all

rvt

pdf

dwg

Intersection - Ridge / Hip 064

Select all

rvt

pdf

dwg

Intersection - Valley 065

Select all

rvt

pdf

dwg

Intersection - Sheet Lap 066

Select all

rvt

pdf

dwg

Intersection - Sheet T-Joint 067

Select all

rvt

pdf

dwg

Junction - Upstand to Pitched Roofing 070

Select all

rvt

pdf

dwg

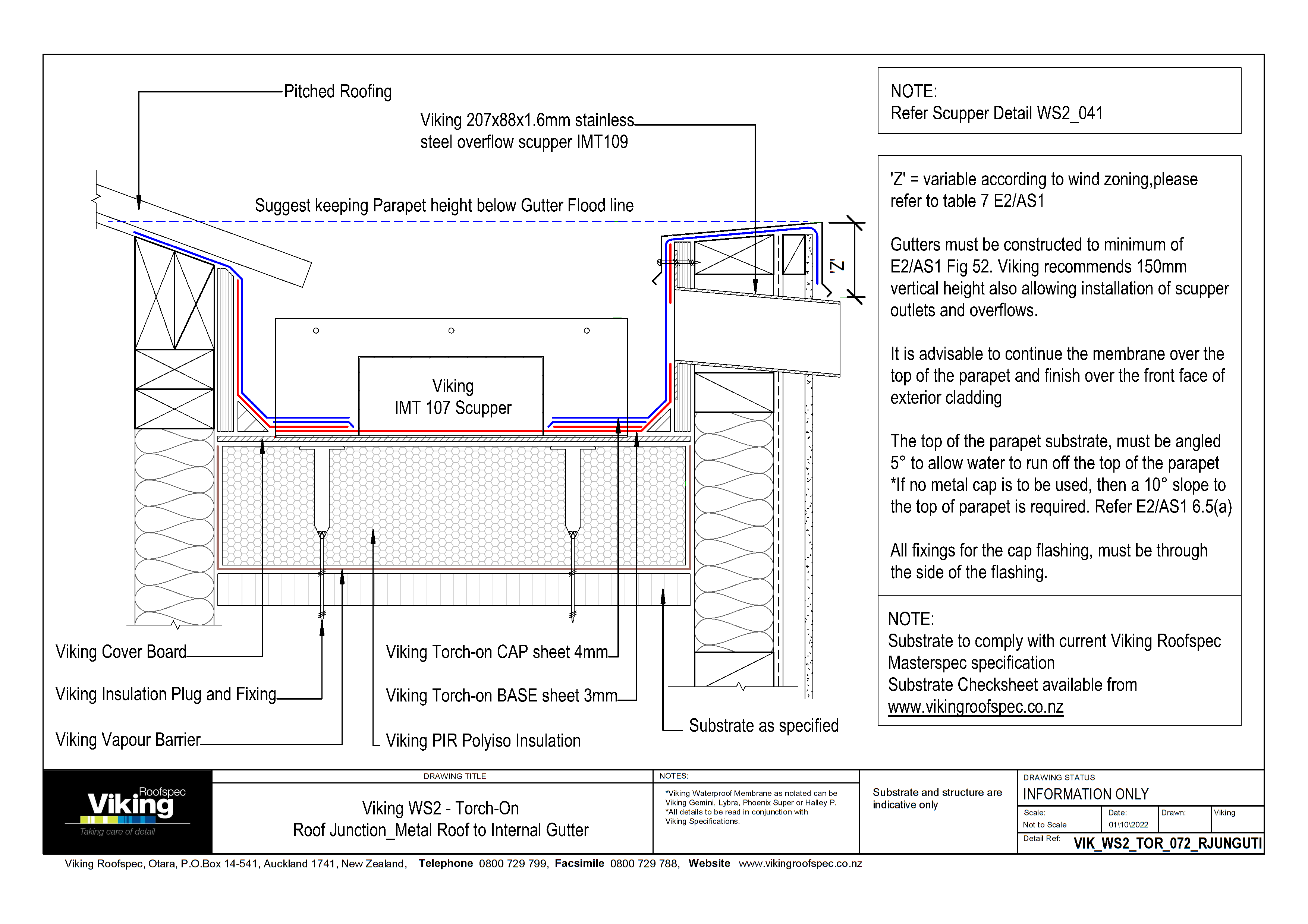

Junction - Metal Roof to Internal Gutter 072

Select all

rvt

pdf

dwg

Junction - Mansard Verge 073

Select all

rvt

pdf

dwg

Junction - Dormer ISO 074

Select all

rvt

pdf

dwg

Junction - Dormer Gutter 074a

Select all

rvt

pdf

dwg

Apron Upstand behind Cladding 080

Select all

rvt

pdf

dwg

Apron Upstand to RAB behind Cladding 080a

Select all

rvt

pdf

dwg

Apron Upstand Terminations without Cladding 081

Select all

rvt

pdf

dwg

Threshold Window 091

Select all

rvt

pdf

dwg

WarmSpan² Engineering Report

Select all

pdf

WarmSpan² - Product Technical Statement

Select all

pdf

WarmSpan² - Product Data Sheet

Select all

pdf

WarmSpan² Substrate Checklist - Steel Tray

Select all

pdf

WarmSpan² Substrate Checklist - Plywood

Select all

pdf

Vapour Barrier - Product Data Sheet

Select all

pdf

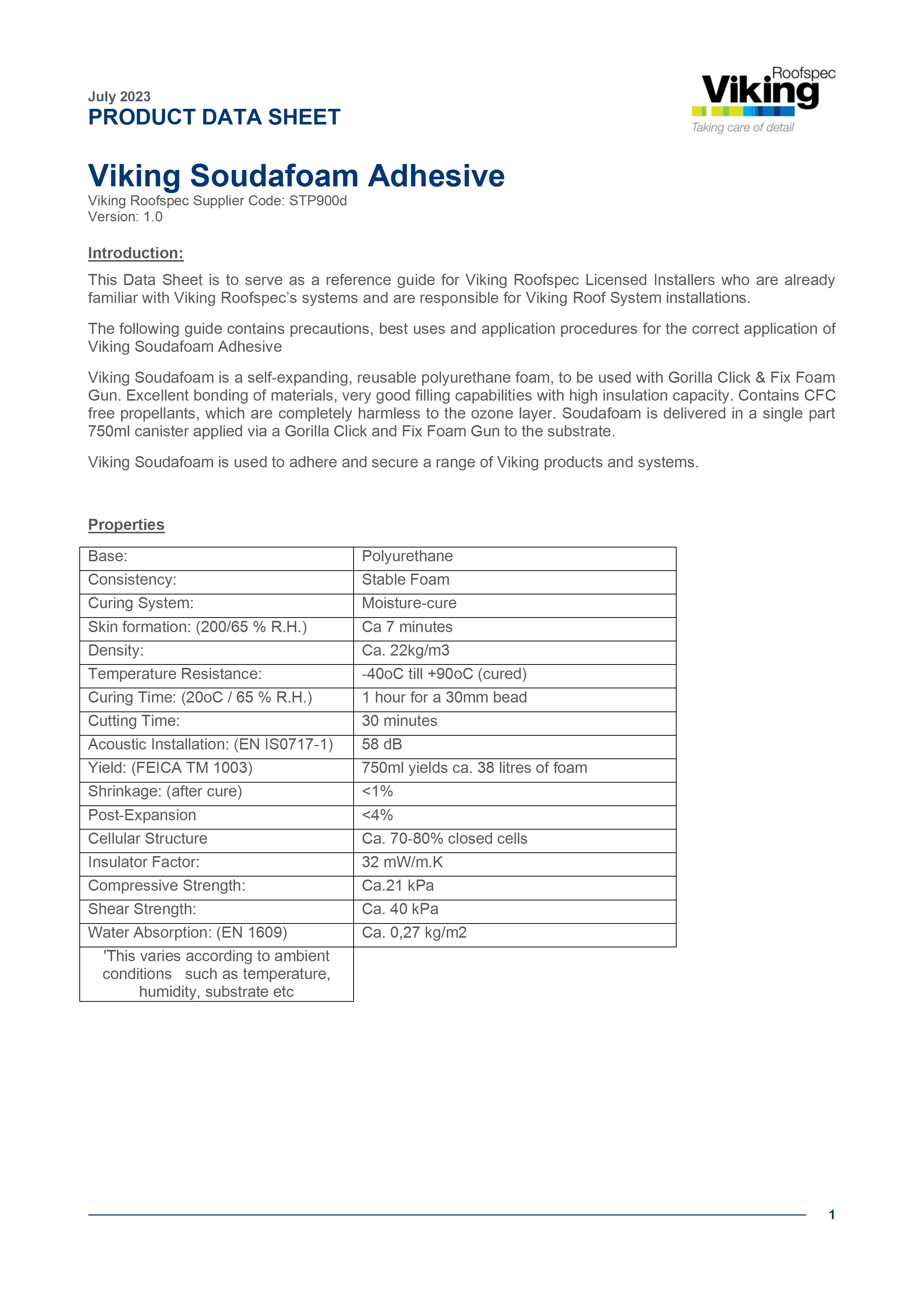

Soudafoam Adhesive Product Data Sheet

Select all

pdf

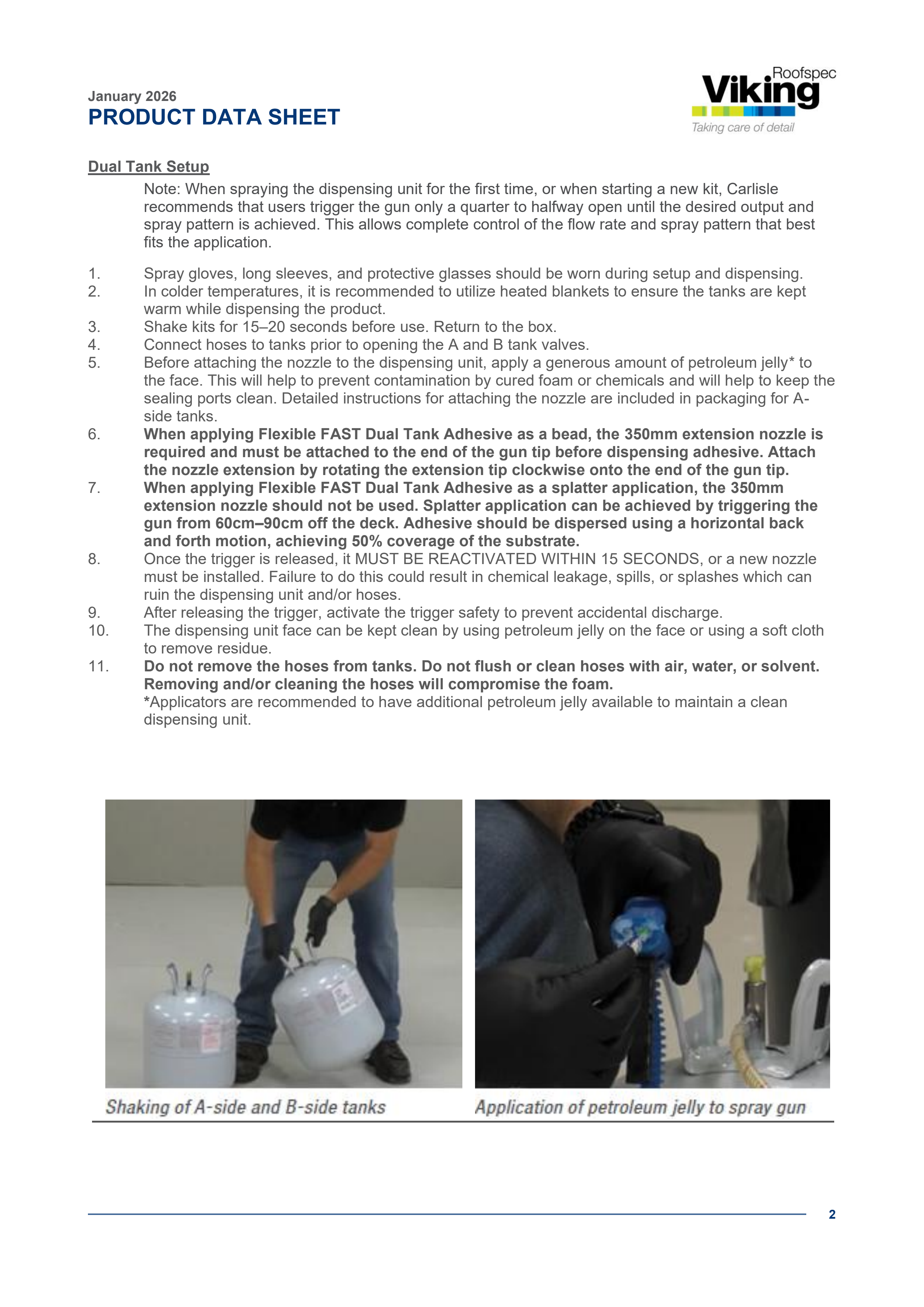

Viking Flexible FAST Dual Tank PDS V1.1

Select all

pdf

Cover Board - Product Data Sheet

Select all

pdf

Quality Control Checklist - Low Risk Design & Details

Select all

pdf

Quality Control Checklist - Pre-Installation

Select all

pdf

Quality Control Checklist - Post Installation

Select all

pdf

WarmSpan/WarmRoof Accessory Guide

Select all

pdf

Single Pack Spray Adhesive STP900d MSDS

Select all

pdf

Cleaner For Click and Fix Foam Gun STP900e MSDS

Select all

pdf

Dual Cartridge FAST Adhesive STP900b MSDS

Select all

pdf

Dual Tank FAST Part A MSDS

Select all

pdf

Dual Tank FAST Part B MSDS

Select all

pdf

Vapour Barrier Primer SES301 MSDS

Select all

pdf
